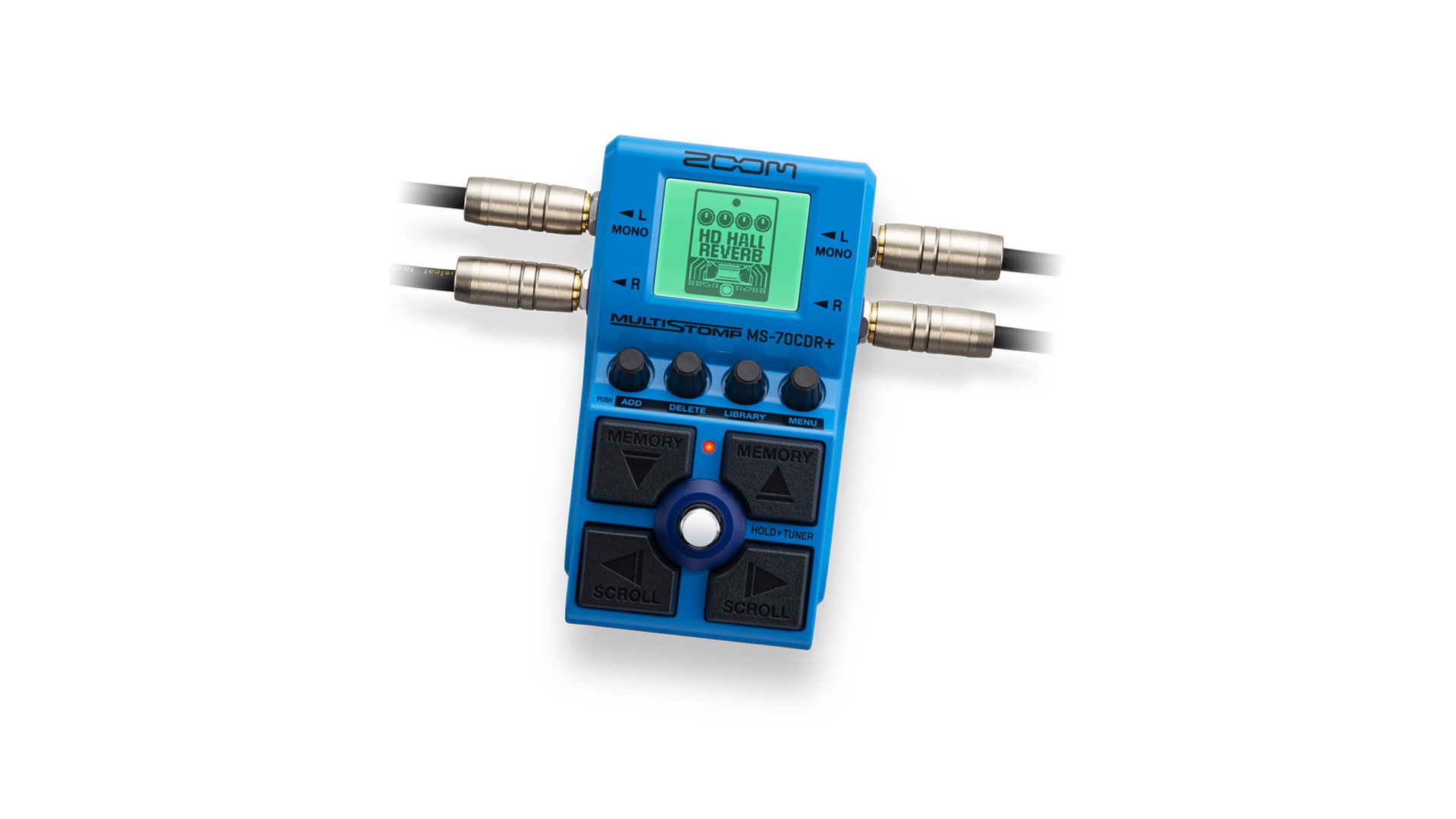

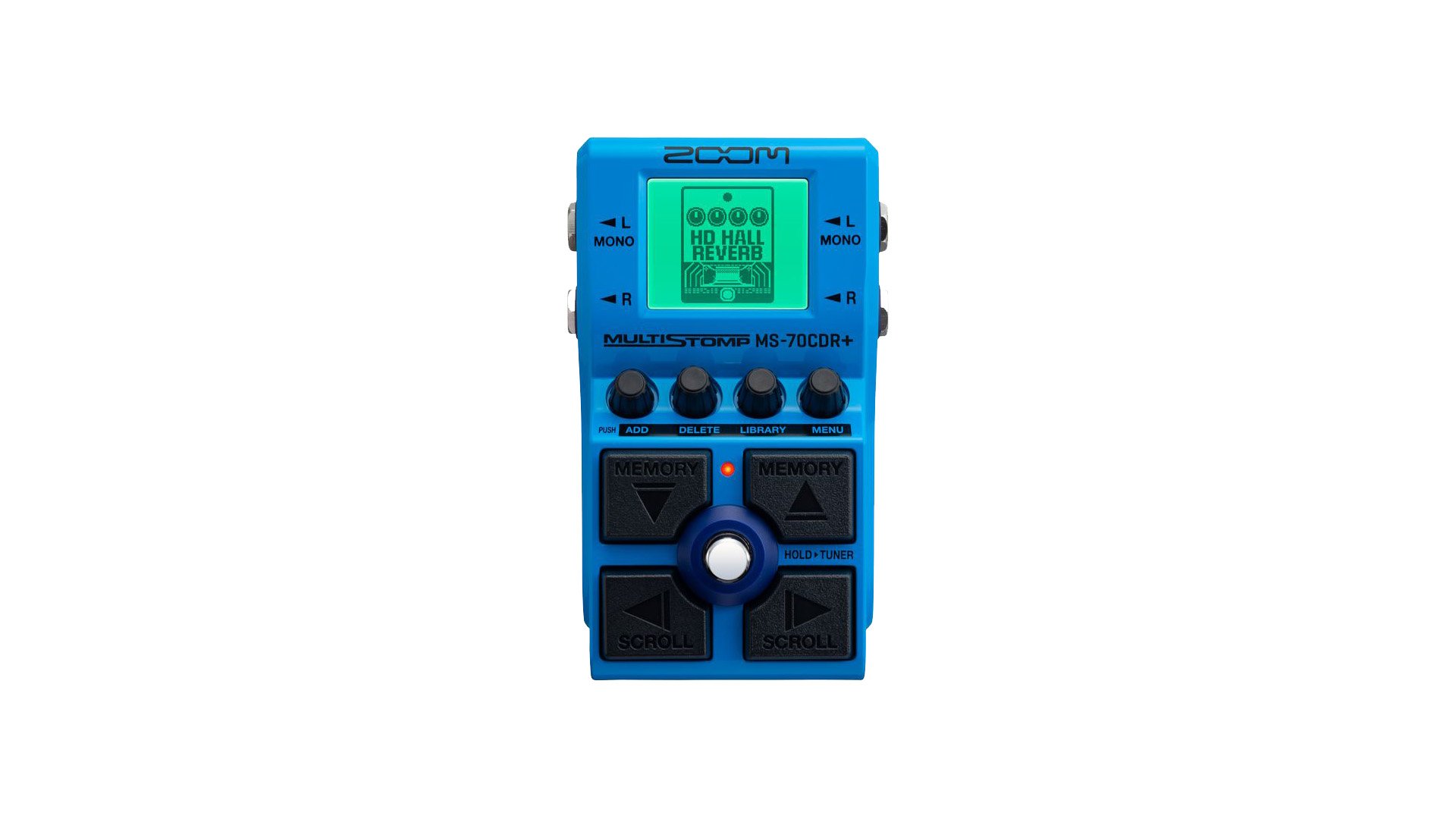

Zoom MS-70CDR+

Specs
Maximum number of simultaneous effects

6 effects
User patch memories

100
Sampling frequency

44.1 kHz
A/D conversion

24-bit 128× oversampling
D/A conversion

24-bit 128× oversampling
Signal processing

32-bit
Frequency response

20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kΩ load)
Display

160×128 dot-matrix LCD
Inputs
L/R
Standard mono phone jacks Rated input level: −20 dBu Input impedance (line): 470 kΩ
Outputs
L/R
Standard mono phone jacks Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
Input S/N

122 dB
Noise floor (residual noise)
L/R
–100 dBu

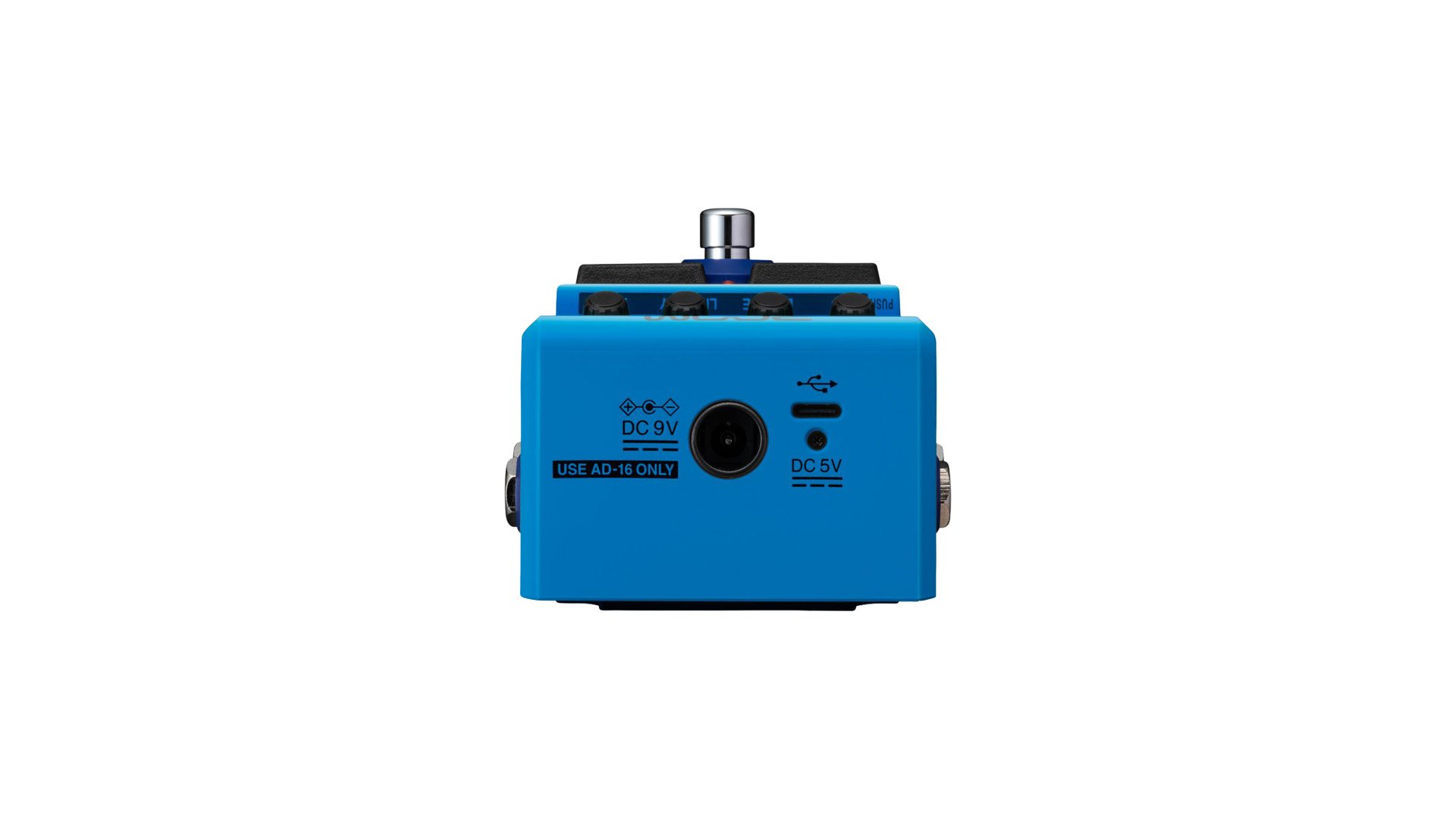

Power

AC adapter: 9V DC 500mA center negative (ZOOM AD-16) 2 AA batteries (alkaline, lithium or rechargeable NiMH batteries)
Estimated operation times
• These values are "approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions."
Alkaline batteries: about 7 hours (about 5 hours using using batteries) NiMH batteries (1900 mAh): about 6.5 hours (about 5 hours using stereo input) Lithium batteries: about 14 hours (about 10 hours using stereo input)
USB

Port: USB 2.0 Type-C / Supported cable type: Type-C Handy Guitar Lab: USB 1.1 Full Speed • Use a USB cable that supports data transfer. USB bus power is supported.
Dimensions

133 mm (D) × 79 mm (W) × 61 mm (H)
Weight

368 g (excluding batteries) 415 g (including batteries)
Note: 0 dBu = 0.775 V
