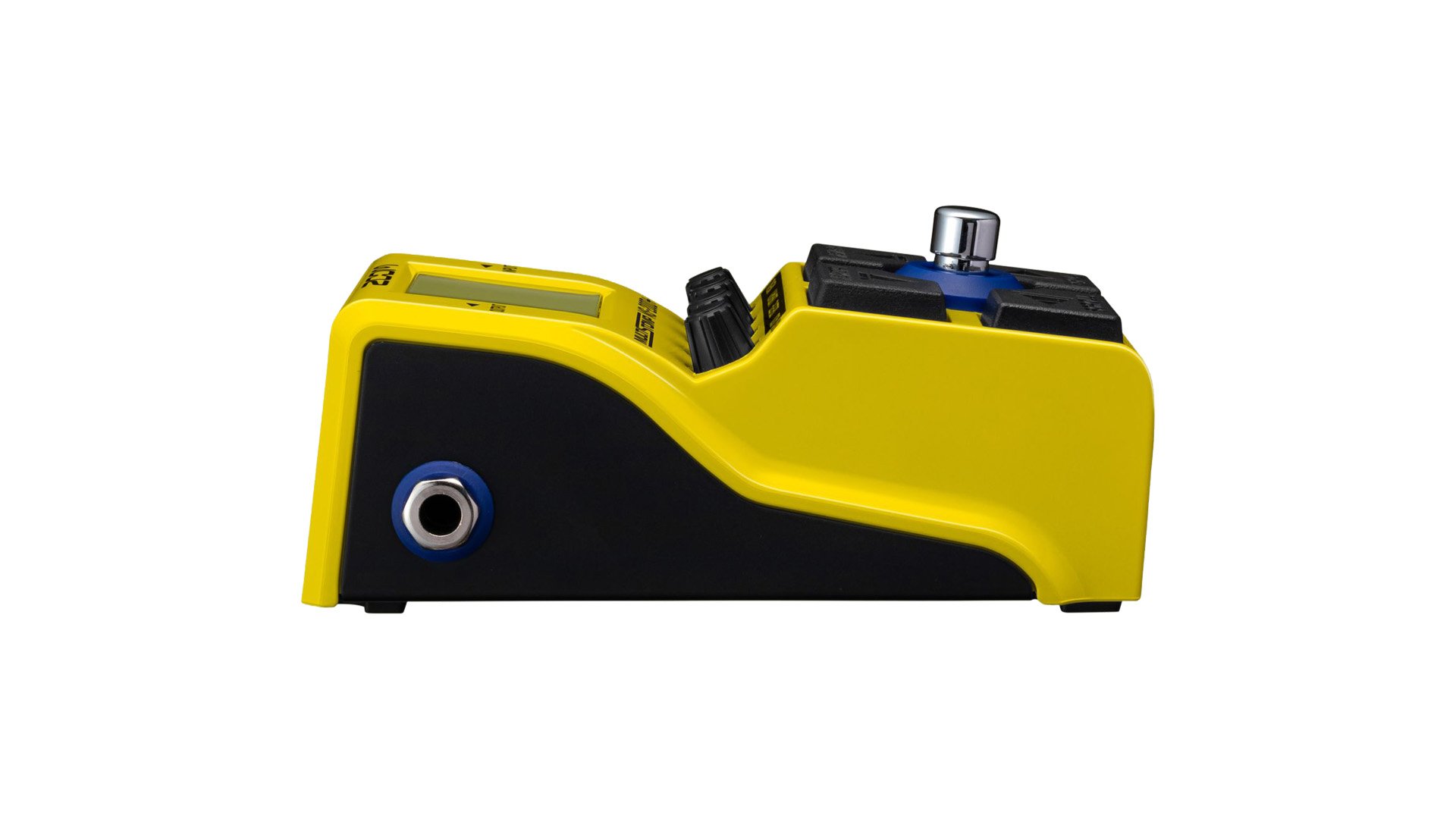

Zoom MS-200D+

Specs
Maximum number of simultaneous effects

2 effects
User patch memories

250
Sampling frequency

44.1 kHz
A/D conversion

24-bit 128× oversampling
D/A conversion

24-bit 128× oversampling
Signal processing

32-bit
Frequency response

20 Hz – 20 kHz (+0.5 dB/−0.5 dB) (when 10kΩ load)
Display

160 × 128 dot-matrix LCD
Input
INPUT
Standard mono phone jack


Rated input level: −20 dBu


Input impedance (line): 470 kΩ
Outputs
L/R
Standard mono phone jacks


Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
Input S/N

122 dB
Noise floor (residual noise)
L/R
–100 dBu
Power
AC adapter
9V DC 500mA center negative (ZOOM AD-16)

2 AA batteries
Alkaline, Lithium or rechargeable NiMH batteries


• USB bus power is supported.
Estimated operation times using batteries
Alkaline batteries
About 7 hours

NiMH batteries (1900 mAh)
About 6.5 hours

Lithium batteries
About 14 hours


• These values are approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
USB
Port
USB 2.0 Type-C

Supported cable type
Type-C

Handy Guitar Lab
USB1.1 Full Speed


• Use a USB cable that supports data transfer.
Dimensions

133 mm (D) × 79 mm (W) × 61 mm (H)
Weight

346 g (excluding batteries) 393 g (including batteries)



Note: 0 dBu = 0.775 V
