Zoom AC-3
คุณสมบัติสินค้า:

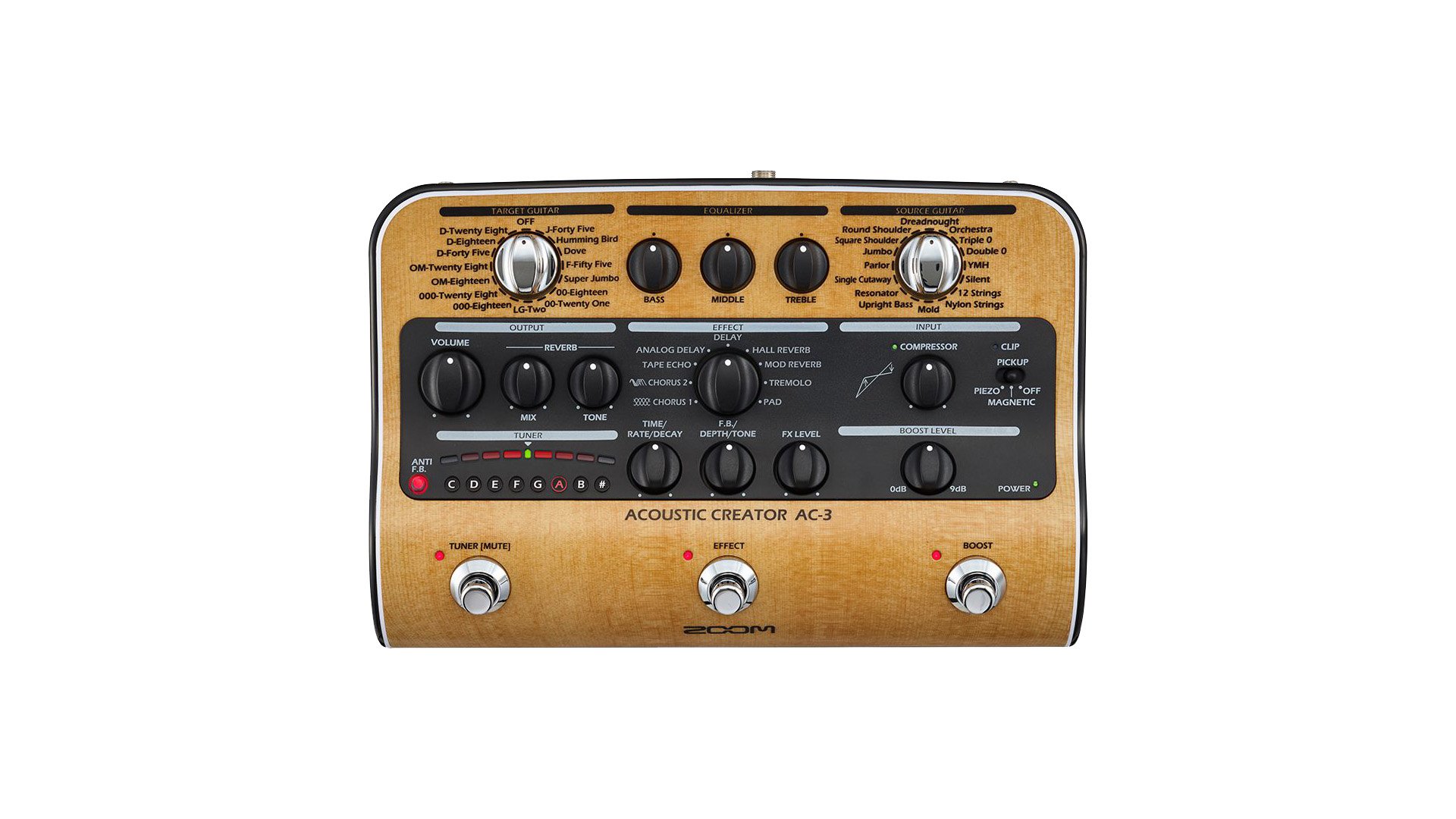

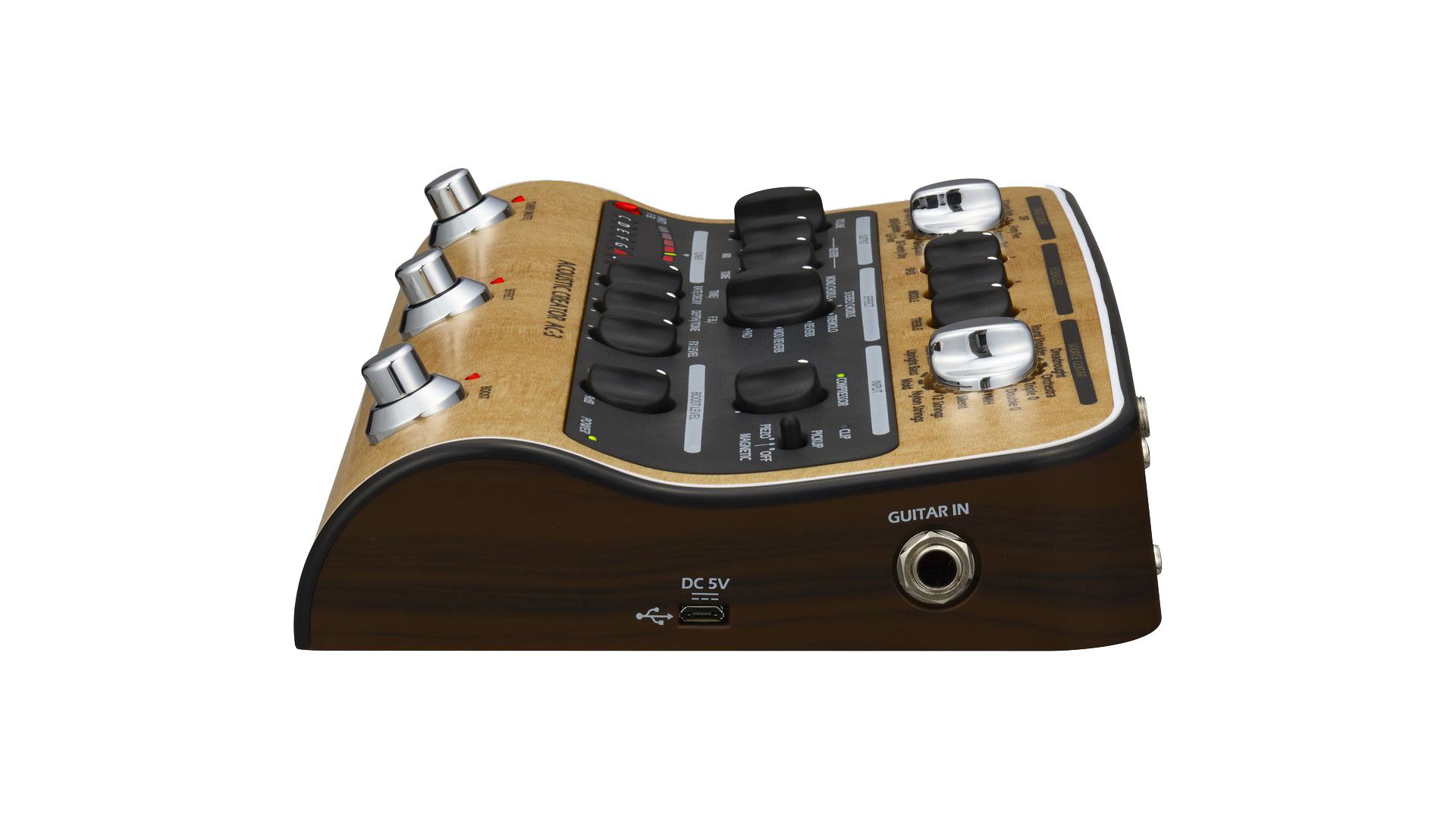

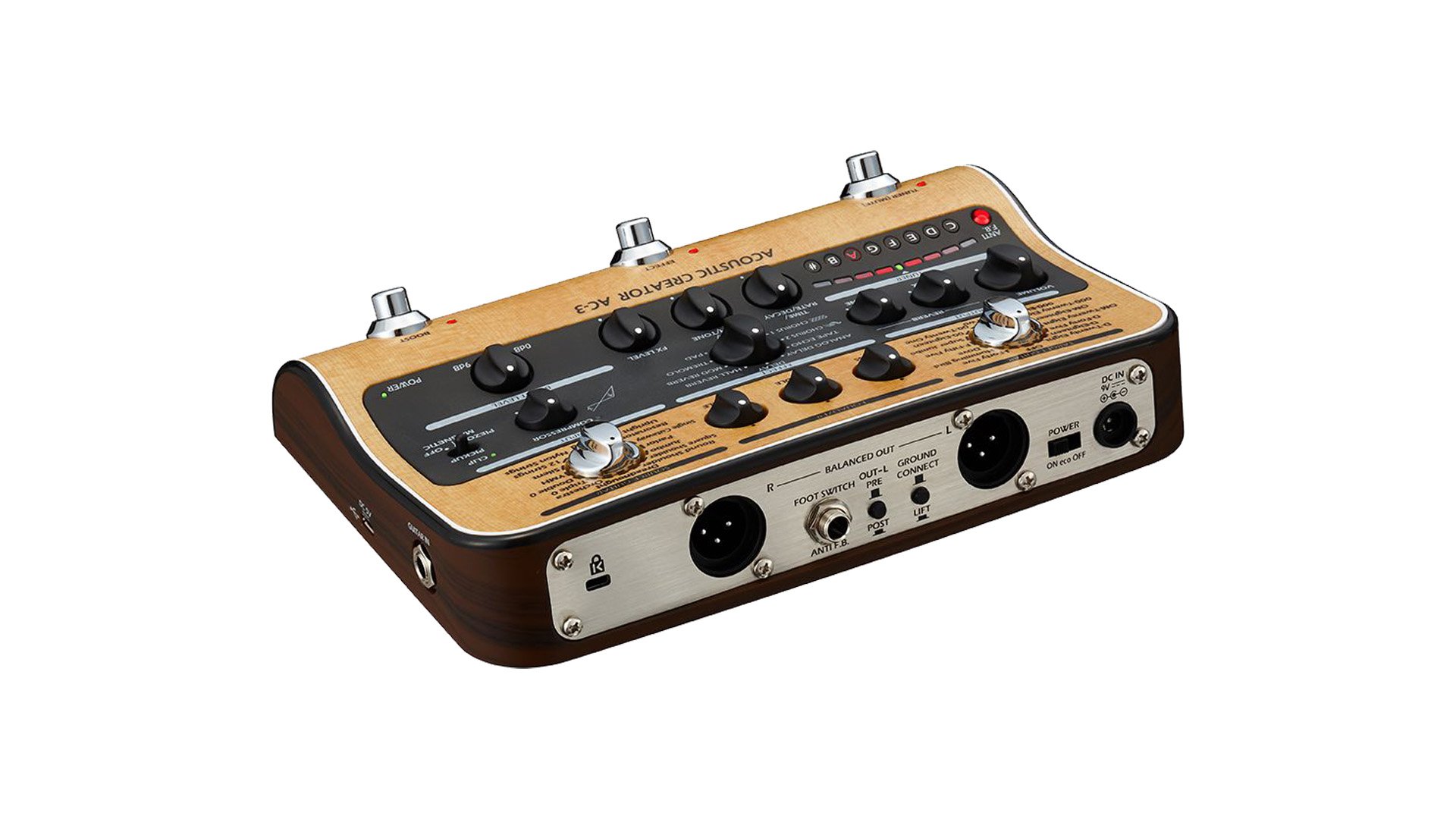

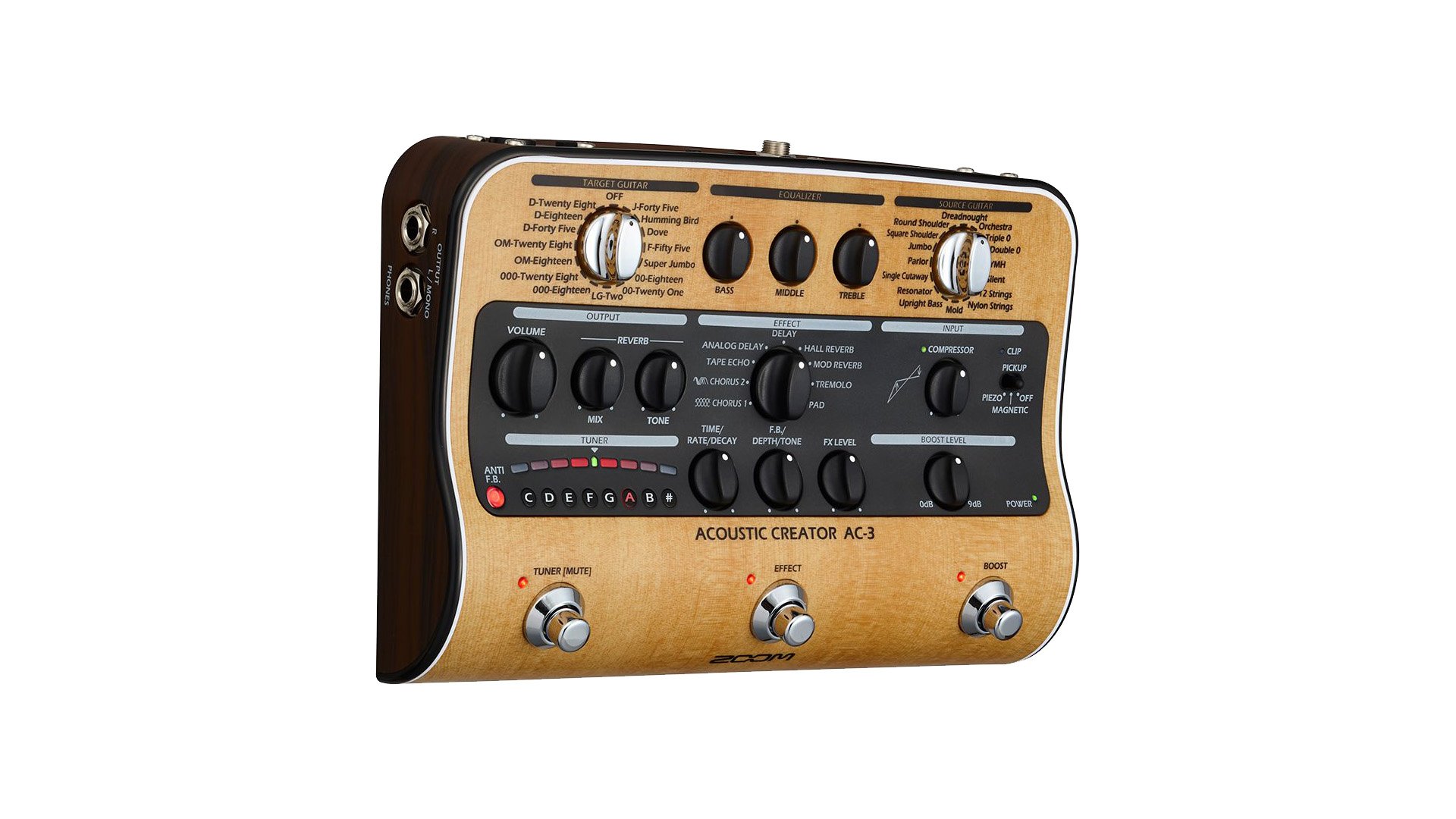

Like its little brother, the AC-3 Acoustic Creator is an enhanced direct box with essential DI features that help you achieve great tone no matter where you play. The AC-3 is equipped with an effects generator, stereo outputs, and a compressor. With these features plus the same high-quality preamp and 3-band EQ as the AC-2, the AC-3 is an all-in-one acoustic toolkit that’s perfect for live performance and studio.
หมวดหมู่ : Zoom , มิกซ์เซอร์ / Mixer ,
แบรนด์ : Zoom
Share
Specs
General
Source Guitars:
16 Types
Target Guitars:
15 Types
Effect Types:
9 Types
Sampling Frequency:
44.1 kHz
A/D conversion:
24-bit with 128x oversampling
D/A conversion:
24-bit with 128x oversampling
Signal processing:
32-bit
Frequency characteristics:
20 Hz – 20 kHz (+1 dB/-3 dB) (10 kΩ load)
Inputs
Input:
Standard mono phone jack Rated input level: -20 dBu Input impedance: 10 MΩ
Outputs
L/MONO/PHONES:
Standard stereo phone jack (combined line/headphones)Maximum output level: Line +7 dBu (10 kΩ or more output impedance) Headphones 8 mW + 8 mW (32 Ω load)
R:
Standard mono phone jack Maximum output level: Line +7 dBu (10 kΩ or more output impedance)
BALANCED OUT-L:
XLR jack Output impedance: 100 Ω (HOT-GND, COLD-GND), 200 Ω (HOT-COLD) PRE/POST (switchable) GND LIFT (switchable)
BALANCED OUT-R:
XLR jack Output impedance: 100 Ω (HOT-GND, COLD-GND), 200 Ω (HOT-COLD) GND LIFT (switchable)
Additional Specifications
Equivalent input noise:
120 dBu
Noise floor (residual noise):
-100 dBu
Control input:
FS01 Input
Power:
AC adapter: 9 V DC 500 mA center negative (ZOOM AD-16) Batteries: 2 AA (about 3 hrs continuous operation time using alkaline batteries)
USB:
USB MIDI USB Micro-B
Dimensions:
6in (D) X 9in (W) X 1.5 (H)
Weight:
2.5 lbs (Not including batteries)
Options:
FS01 footswitch
Note: 0 dBu = 0.775 V
