Specs
Maximum number of simultaneous effects :
Amplifier + 9 effects
User patches :
240
Sampling frequency:
44.1 kHz
A/D conversion:
24-bit 128× oversampling
D/A conversion:
24-bit 128× oversampling
Signal processing:
32-bit
Frequency characteristics:
20 Hz – 20 kHz (+1 dB/−2 dB) (10kΩ load)
Displays:
5" TFT color LCD (800×480) Dot-matrix LCDs (128×32) (6)

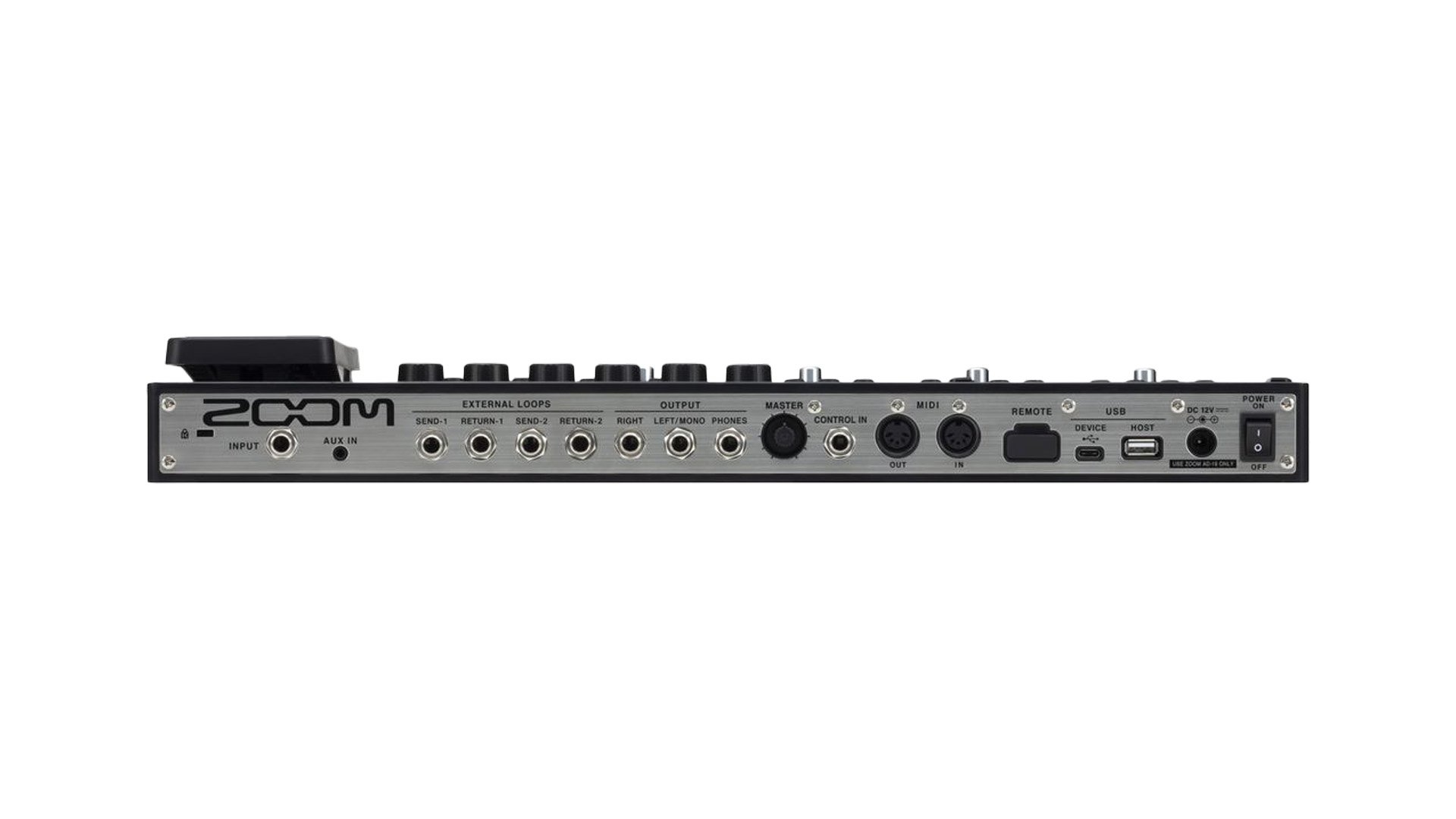

INPUTS
INPUT:
Standard mono phone jack Rated input level: -20 dBuInput impedance (line): 500 kΩ
RETURN:
Standard mono phone jacks (2) Rated input level: -20 dBuInput impedance (line): 1 MΩ
AUX IN:
Stereo mini jack Rated input level: -10 dBuInput impedance (line): 10 kΩ
OUTPUTS
Left/Right:
Standard mono phone jack Maximum output level:INST/LINE +11.4 dBu/+19 dBu (when output impedance 10 kΩ or higher)
PHONES:
Standard stereo phone jack Maximum output level:Line +11.4 dBu (when output impedance 10 kΩ or higher)Headphones 24 mW + 24 mW (at 32Ω load)
SEND:
Standard mono phone jacks (2) Maximum output level:Line +11.4 dBu (when output impedance 10 kΩ or higher)
Input S/N :
123 dB
Noise floor (residual noise):
Left/Right : INST/LINE −99.5 dBu/−92.5 dBuSEND: -99.0 dBu
MIDI IN/OUT:
5-pin DIN jacks
Control input:

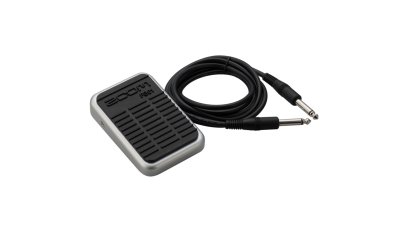

FP02M input
USB DEVICE:
Connector: USB2.0 Type-C / Supported cable: Type-C cable GuitarLab: USB1.1 Full SpeedAudio Interface: USB2.0 High Speed, 44.1 kHz/32-bit 4in 4out• Use cables for data transfer. USB bus power not supported.
USB HOST:
Connector: USB2.0 Type-A / Standard: USB 2.0 High Speed • Use a USB thumb drive.
REMOTE:
ZOOM BTA-1 or other dedicated wireless adapter
External dimensions:
253 mm (D) × 495 mm (W) × 64 mm (H)
Weight:
2.8 kg
