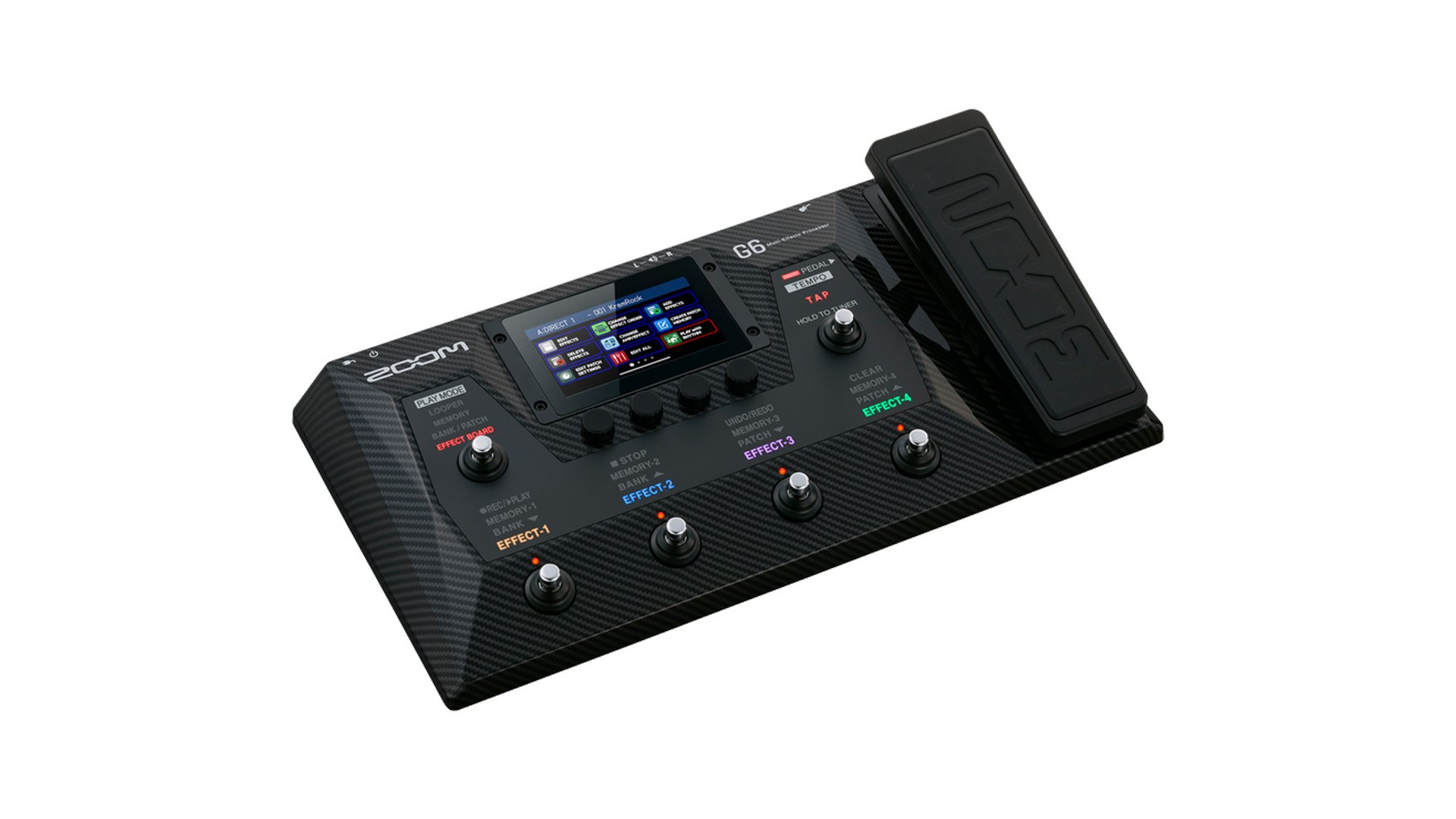

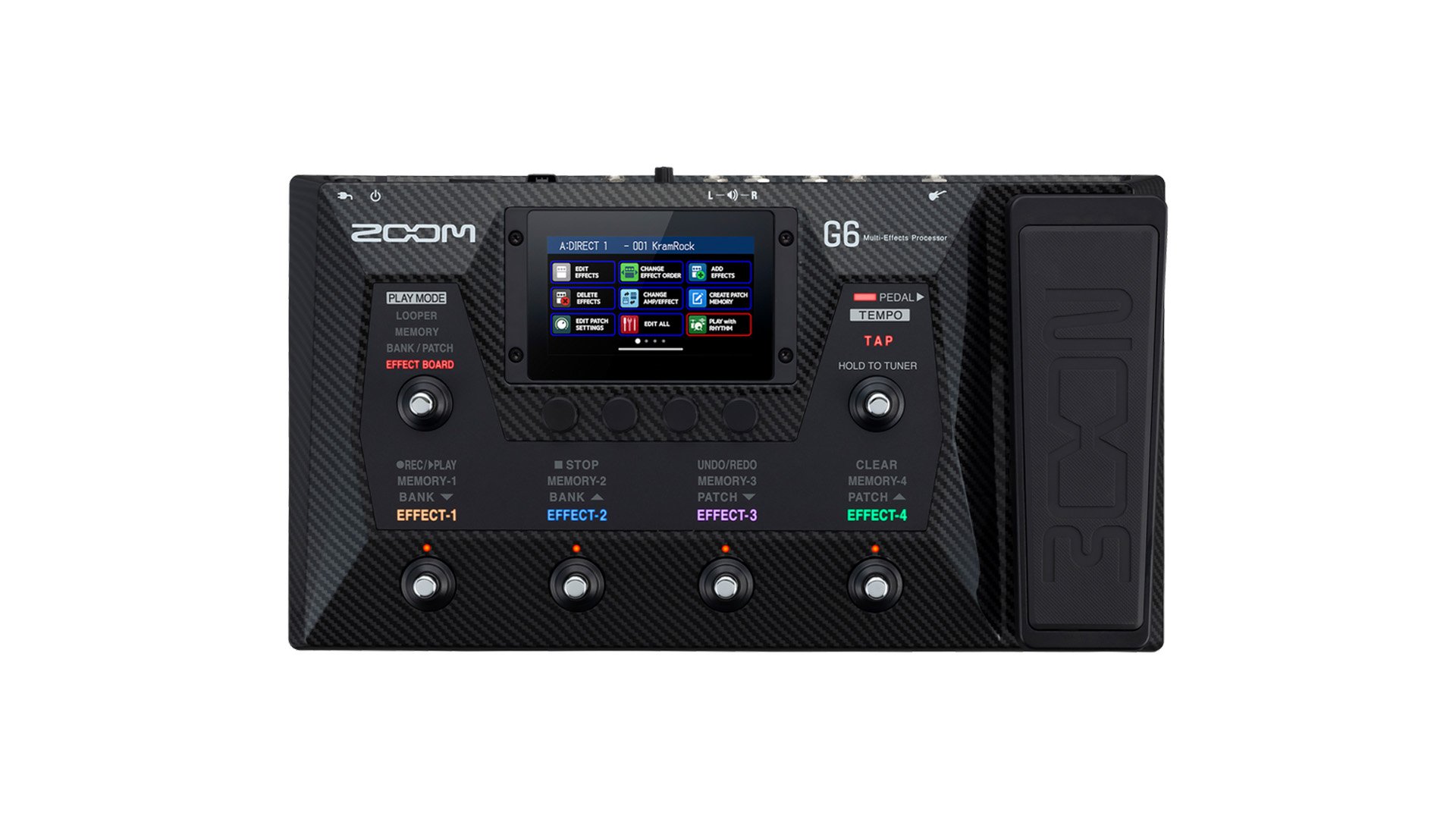

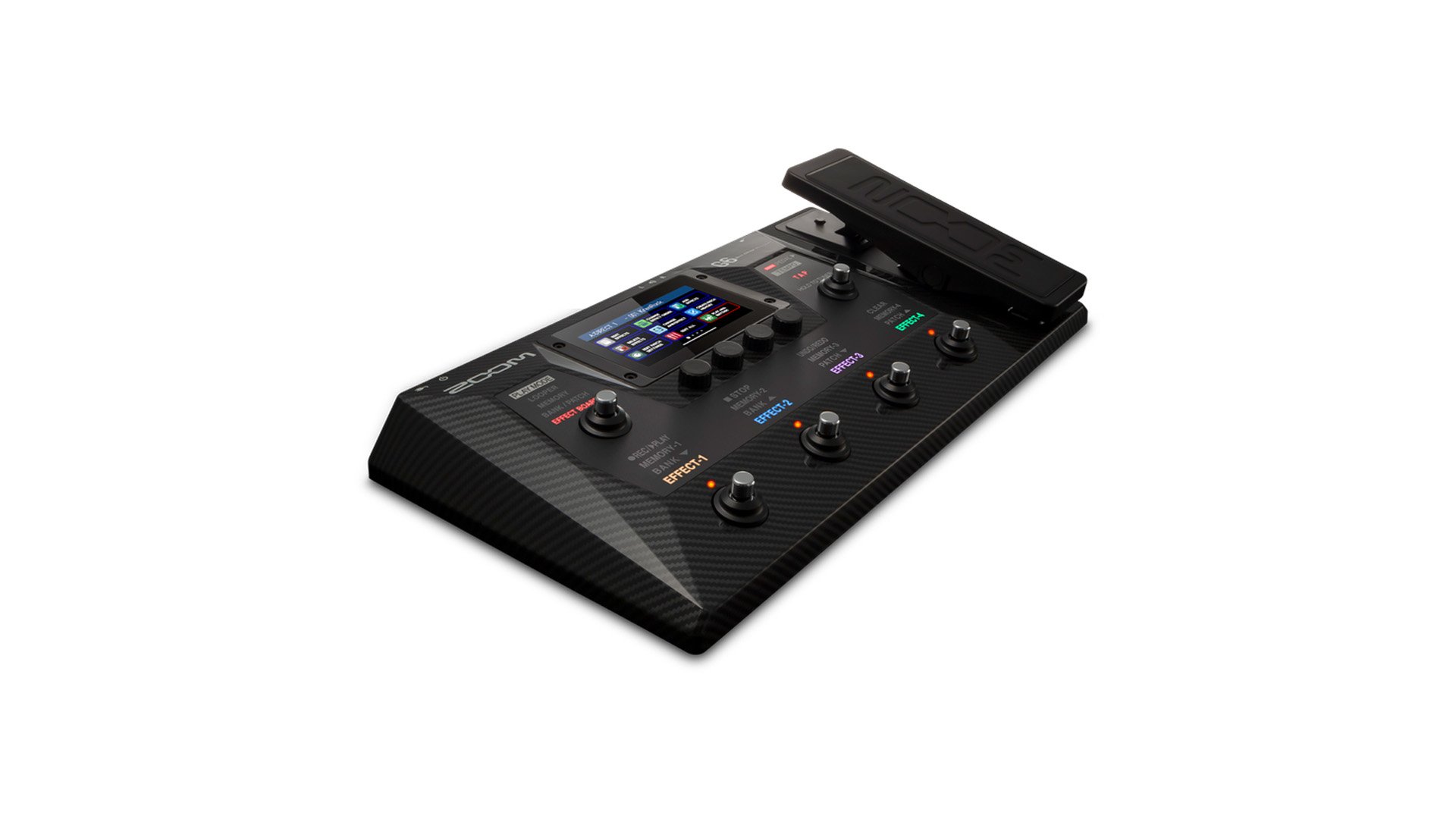

The Zoom G6

Specs
MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS
9 effects or 7 effects + Amp
USER PATCHES
240
SAMPLING FREQUENCY
44.1 kHz
A/D CONVERSION
24-bit 128x oversampling
D/A CONVERSION
24-bit 128x oversampling
SIGNAL PROCESSING
32-bit
FREQUENCY CHARACTERISTICS
20 Hz - 20kHz (+0.5 db/-0.5 dB) (10Ωk load)
DISPLAY
4.3" TFT color LCD (480x272)
INPUTS
INPUT
Standard mono phone jack

Rated input level: -20 dBu

Input impedance (line): 500 Ωk
RETURN
Standard mono phone jack

Rated input level: -20 dBu

Input impedance (line): 1 ΩM
AUX IN
Stereo mini jack

Rated input level: -10 dBu

Input impedance (line): 10 Ωk
OUTPUTS
OUTPUT R
Standard mono phone jack

Maximum output level: +11.4 dBu (when output impedance 10 Ωk or higher)
OUTPUT L/MONO (PHONES)
Standard stereo phone jack

Maximum output level: +11.4 dBu (when output impedance 10 Ωk or higher)

Headphones 24 mW + 24 mW (at 32 load)
SEND
Standard stereo phone jack

Maximum output level: +11.4 dBu (when output impedance 10 Ωk or higher)
INPUT S/N
123 dB
NOISE FLOOR (RESIDUAL NOISE)
L/R
-99.3 dBu
SEND
-99.0 dBu
CONTROL INPUT
FP02M input
POWER
AC adapter ( 9v DC 500mA, center negative) (Zoom AD-16)
USB
Port: USB 2.0 Micro-B/Supported cable type: Micro-B

Guitar Lab: USB 1.1 Full Speed

Audio Interface: USB 2.0 Full Speed, 44.1 kHz/32-bit, 2 in, 2 out

- Use a USB cable that supports data transfer. USB bus power is not supported
SD CARD
STANDARDS
Cards that support SD/SDXC/SDHC specifications (class 10 or higher)
LOOPER
44.1 kHz/ 16-bit stereo WAV
IR
44.1 - 192kHz, 16/24/32-bit WAV
REMOTE
ZOOM BTA-1 or other dedicated wireless adapter
EXTERNAL DIMENSIONS
228 mm (D) x 418 mm (W) x 65 mm (H)
WEIGHT
1.94 kg
