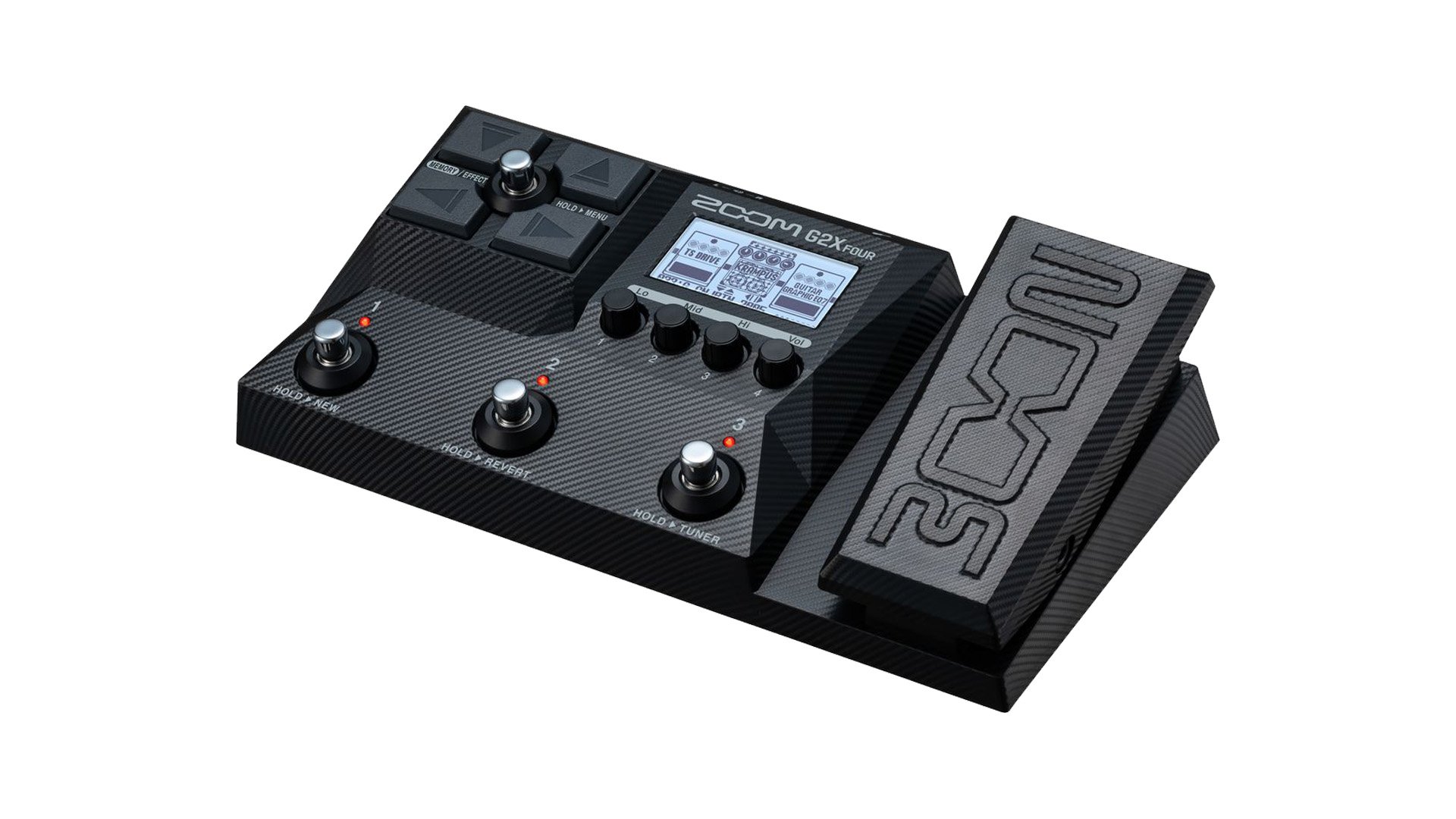

The ZOOM G2X FOUR

Specs
Maximum number of simultaneous effects

6 effects + 1 pedal effect
User patch memories

300
User patch memories

44.1 kHz
A/D conversion

24-bit 128× oversampling
D/A conversion

24-bit 128× oversampling
Signal processing

32-bit
Frequency response

20 Hz – 20 kHz (+0.5 dB/−0.5 dB) (10kΩ load)
Display

256×128 dot-matrix LCD

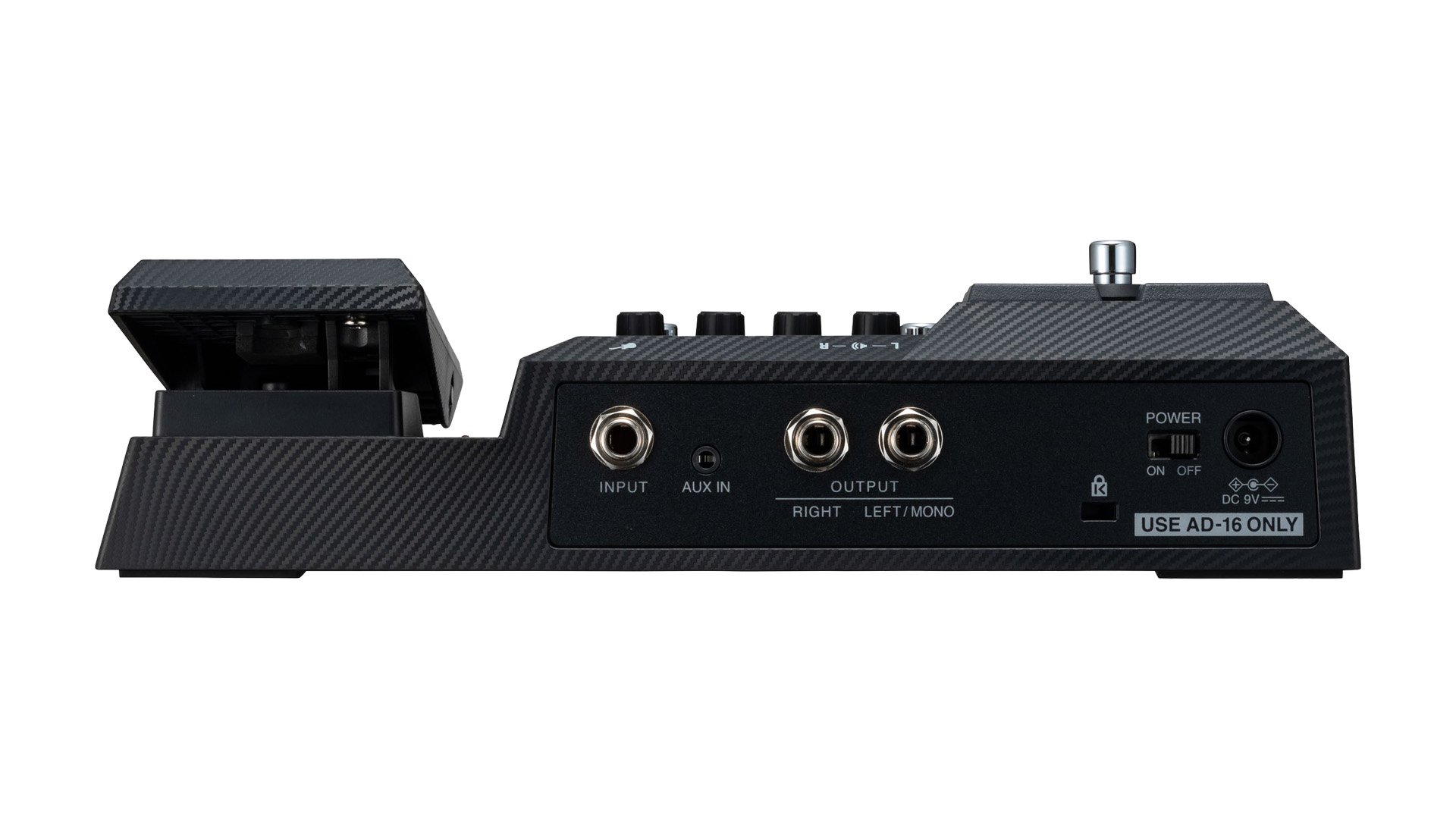

Inputs
INPUT
Standard mono phone jack


Rated input level: −20 dBu


Input impedance (line): 470 kΩ

AUX IN
Stereo mini jack


Rated input level：–10 dBu


Input impedance (line)：10 kΩ
Outputs
LEFT/RIGHT
Standard mono phone jack


Maximum output level: +9.3 dBu (when output impedance 10 kΩ or higher)

PHONES
Stereo mini jack


Maximum output power: 20 mW + 20 mW (into 32Ω load)
Input S/N

122 dB
Noise floor (residual noise)
LEFT/RIGHT
–99.3 dBu

PHONES:
–99.3 dBu
Control input

FP02M input (G2 FOUR only)
Power
AC adapter
9V DC 500mA center negative (ZOOM AD-16)


• USB bus power is supported.
USB

USB 2.0 Type-C port (use cable that supports Type-C)


Handy Guitar Lab: USB 1.1 Full Speed


Audio interface: USB 2.0 Full Speed,


44.1kHz, 32-bit, 2-in/2-out


• Use a USB cable that supports data transfer.
Dimensions
G2 FOUR
145 mm (D) × 184 mm (W) × 71 mm (H)

G2X FOUR
150 mm (D) × 274 mm (W) × 71 mm (H)

G2 FOUR
707 g

G2X FOUR
951g
