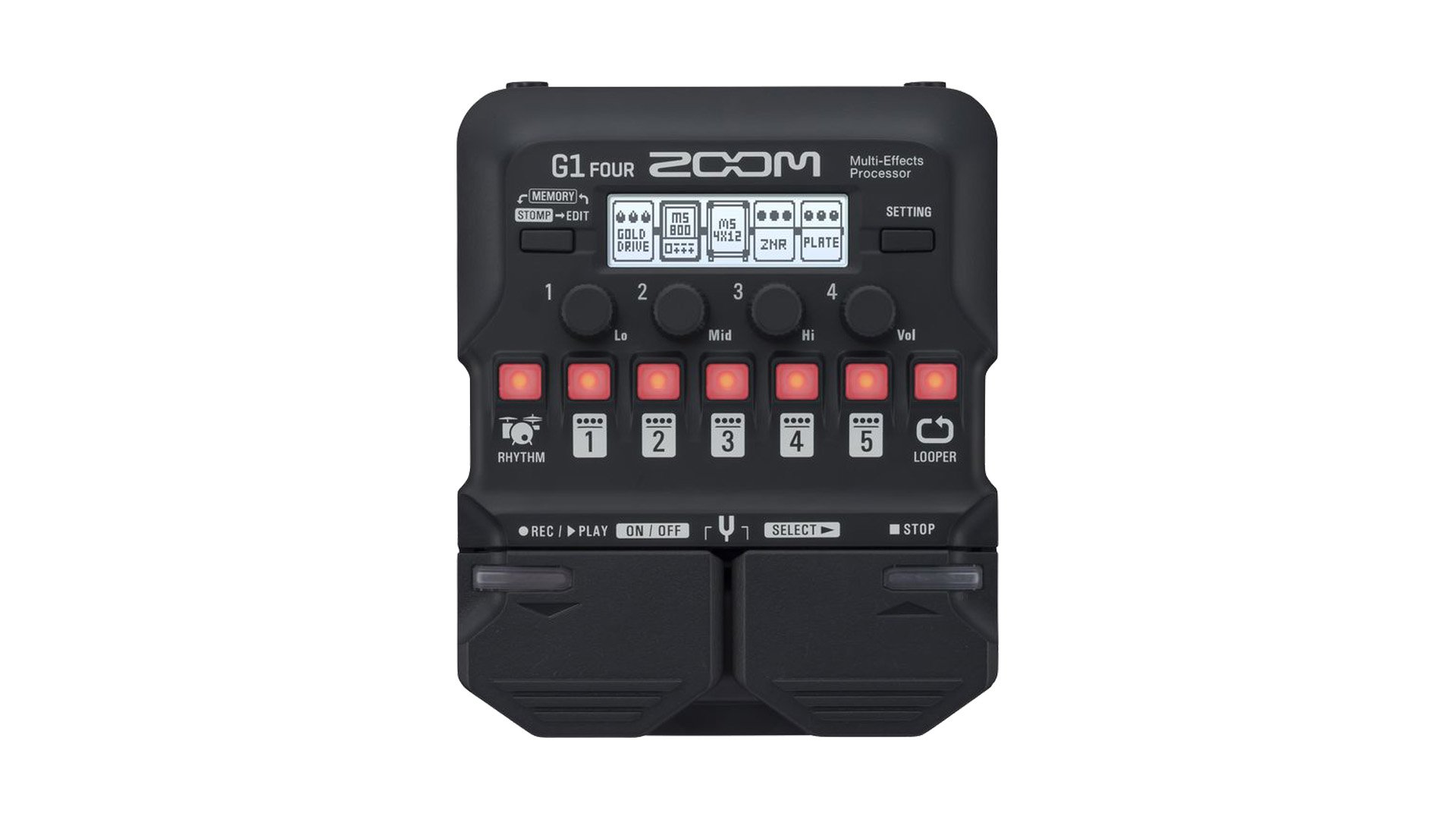

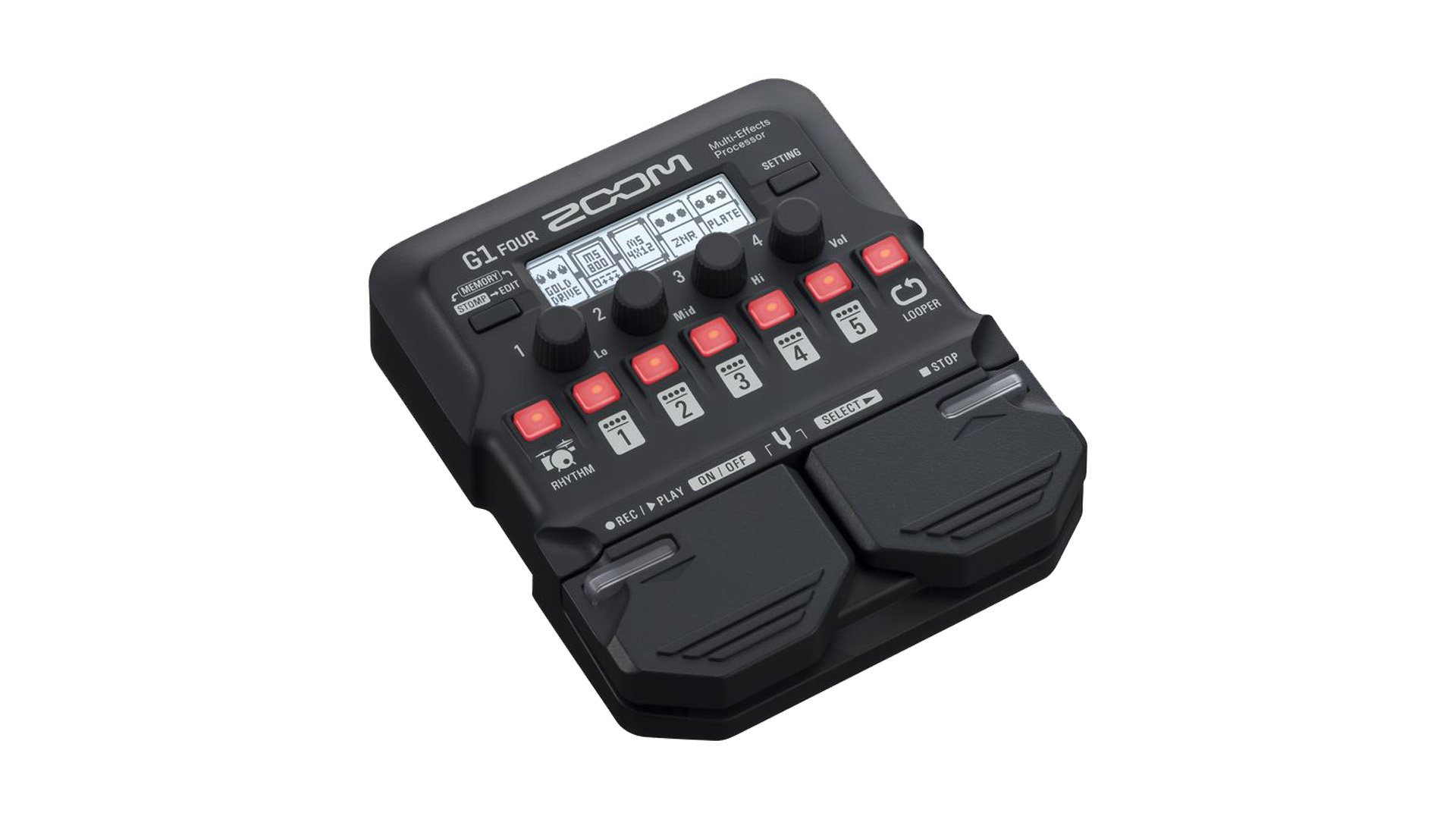

Guitar Multi-Effects Pedals The Zoom G1 FOUR and G1X FOUR feature over 70 effects and amp models, looper and drum machine. Plus, access ZOOM Guitar Lab’s additional library of downloadable effects. Plug in and be amazed!
หมวดหมู่ : Zoom ,  มิกซ์เซอร์ / Mixer ,
แบรนด์ : Zoom
Share
Specs
General Specifications
Maximum number of simultaneous effects
5
User patches
50
Sampling frequency
44.1 kHz
A/D conversion
24-bit, 128× oversampling
D/A conversion
24-bit, 128× oversampling
Signal processing
32−bit
Display
128x32 dot matrix LCD

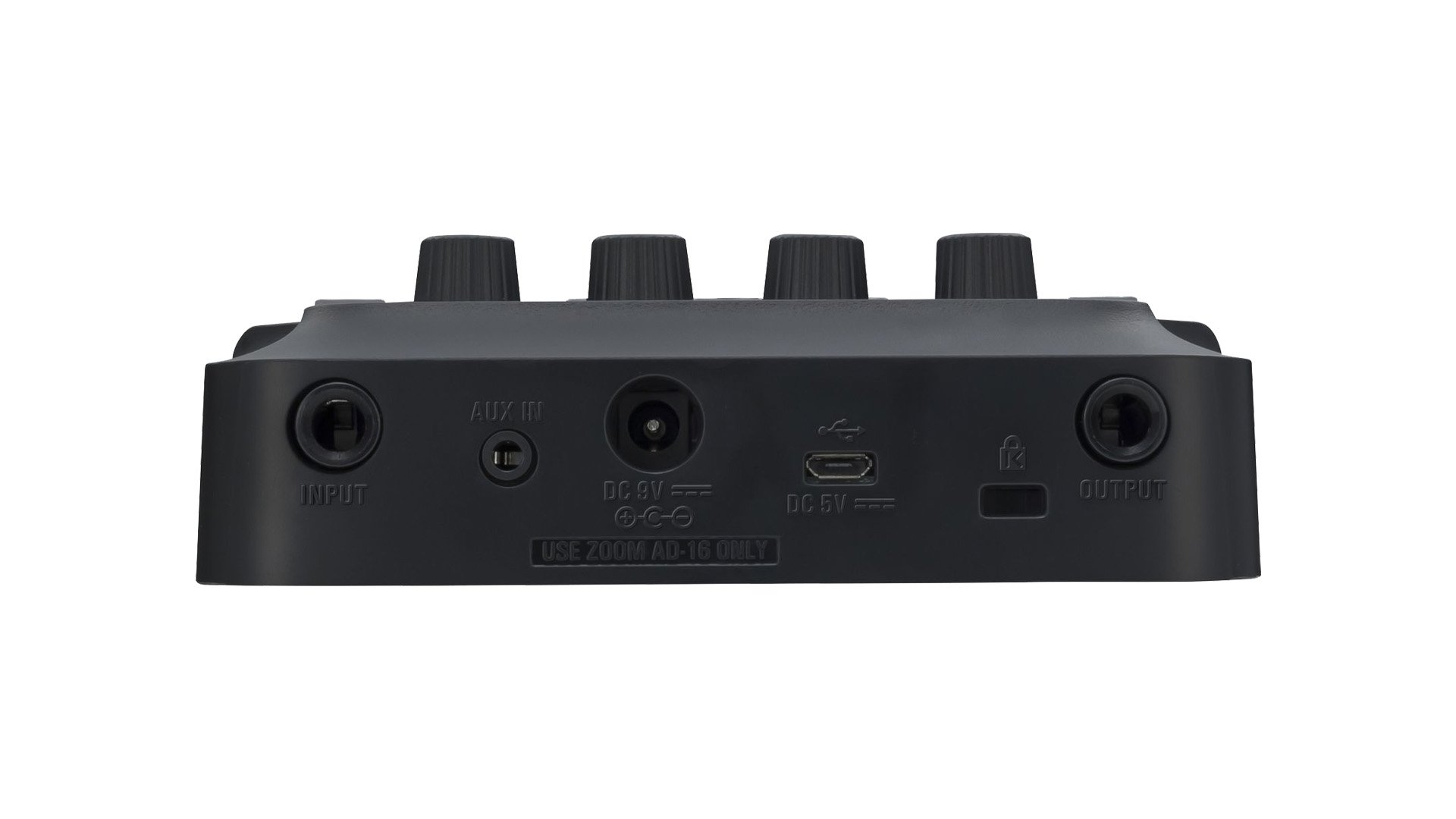

Input
INPUT
Standard mono phone jack | Rated input level: -20 dBu | Input impedance (line): 470 kΩ
AUX IN
Stereo mini jack | Rated input level: -10 dBu | Input impedance (line): 1kΩ
Output
OUTPUT
Standard stereo phone jack (combined line/headphone) | Maximum output level: Line +2 dBu (10 kΩ or more output impedance) | Headphones 17 mW + 17 mW (32Ω load)
Additional Specifications
Input S/N
120 dB
Noise floor (residual noise)
-97 dBu
Power
Power AC adapter: 9V DC 500mA center negative (ZOOM AD-16) | 4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off)
USB
Connector: USB2.0 Micro-B
Guitar Lab | Standard: USB 1.1 Full Speed
Supported cable: USB2.0 Micro-B cable | Use cables for data transfer. | Power can also be supplied through the USB port. | When using a cable designed only for power, other USB functions cannot be used.
External dimensions
G1 FOUR | Height: 156 mm (D) × 130 mm (W) × 42 mm (H) | Weight: 340 g (excluding batteries)
G1X FOUR | Height: 156 mm (D) × 216 mm (W) × 52 mm (H) | Weight: 610 g (excluding batteries)
