The Zoom V6

Specs
V6-SP VOCAL PROCESSOR
Voice Section
12 types
Effect Section
10 Types
HARMONY section
5 Types
Number of patch memories
100
Sampling frequency
44.1 kHz
A/D conversion
24-bit 128× oversampling
D/A conversion
24-bit 128× oversampling
Signal processing
32-bit
Frequency response
20 Hz–20 kHz (+1 dB/−3 dB) (200 kΩ load)
Display
2-digit 7-segment LED

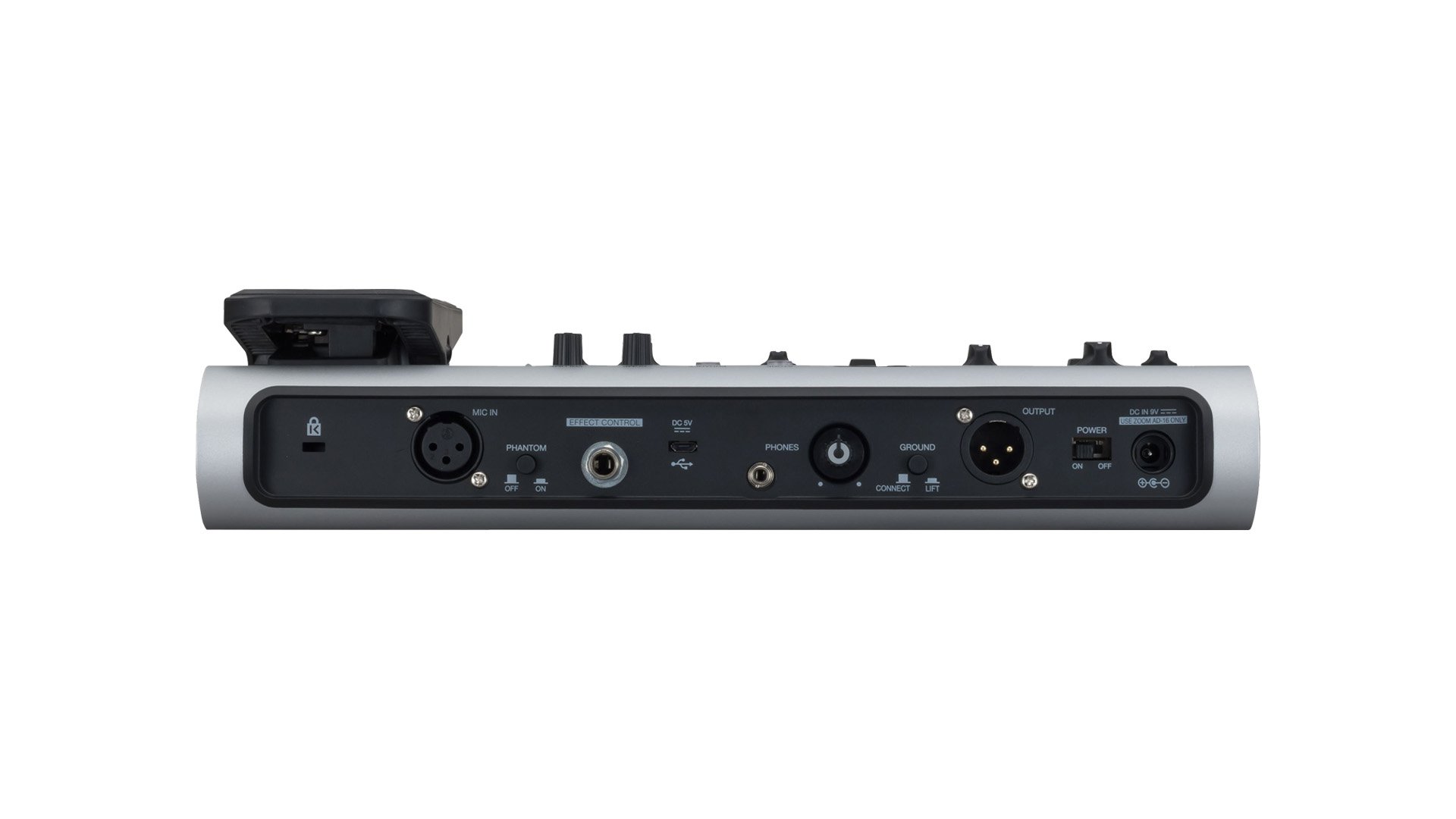

INPUT
MIC IN
XLR jack Input gain: +3 – +40 dBMaximum input level: +4 dBuInput impedance: 3 kΩ or higher (1 kHz)Phantom power: +48 V
OUTPUTS
OUTPUT
XLR jack Maximum output level: +8 dBuOutput impedance: 50 Ω (HOT-GND, COLD-GND, 1 kHz)100 Ω (HOT-COLD , 1 kHz)GROUND LIFT (switchable)
PHONES
Stereo mini jack Maximum output level:20 mW + 20 mW (into 32 Ω load)
Equivalent input noise (when phantom power off)
–125 dBu or less (A-weighted, 150 Ω input, +40 dBu input gain)
Noise floor (residual noise)
–75 dBu
Control input
FP02 input
Power
AC adapter (9 V DC 500 mA, center negative) (ZOOM AD-16) 4 AA batteries (about 3.5 hours continuous operation time when using alkaline batteries)
USB
Connector: Micro USB Audio interface operation: 2-in/2-out USB2.0 Full Speed, 44.1 kHz, 16/24/32-bit• Power can also be supplied through the USB port.• When using a cable designed only for power, other USB functions cannot be used.
External dimensions:
181 mm (D) × 320 mm (W) × 77 mm (H)
Weight:
1.56 kg (excluding batteries)
