The Zoom V3

Specs
Effects
Effects:
16 types
Concurrent effects:
5
Sampling frequency:
44.1 kHz
A/D conversion:
24-bit 128× oversampling
D/A conversion:
24-bit 128× oversampling
Signal processing:
32-bit
Frequency response:
20 Hz–20 kHz (+1 dB/−3 dB) (10 kΩ load)

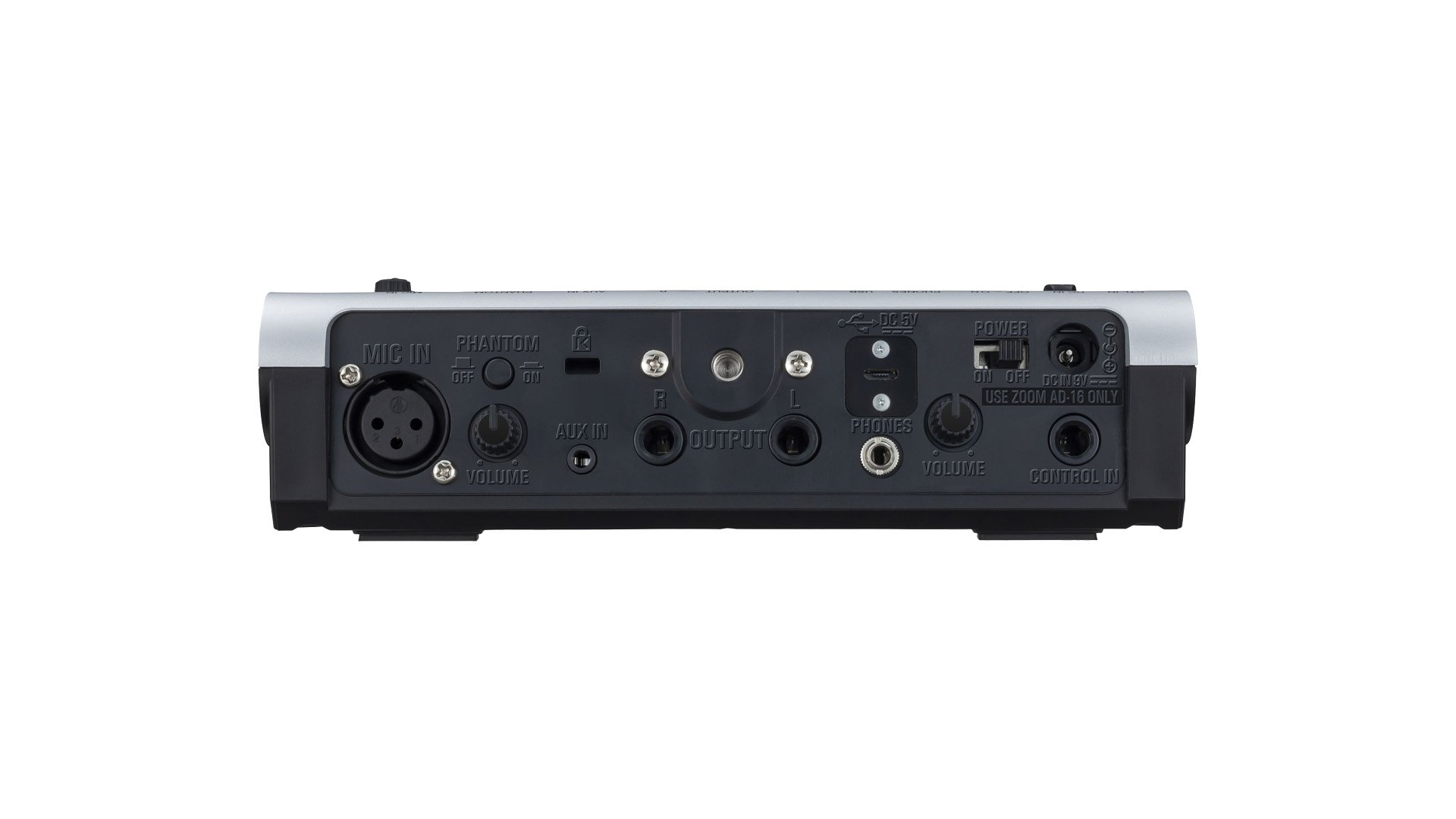

INPUTS
MIC IN:
XLR jack
Input gain:
+3 – +40 dB
Maximum input level:
+4 dBu
Input impedance:
3 kΩ or higher (1 kHz)
Phantom power:
+48 V
AUX IN:
Stereo mini jack
Rated input level:
−10 dBu
Input impedance (line):
22 kΩ
OUTPUTS
L/R OUT:
Unbalanced TS jacks
Maximum output level:
+6 dBu
Output impedance:
100 Ω
PHONES:
Stereo mini jack
Maximum output level:
20 mW + 20 mW (into 32 Ω load)
Equivalent input noise (when phantom power off):
–125 dBu or less (A-weighted, 150 Ω input, +40 dB input gain)
Noise floor (residual noise):
–75 dBu
Control input:
FS01/FP02M input
POWER
POWER:

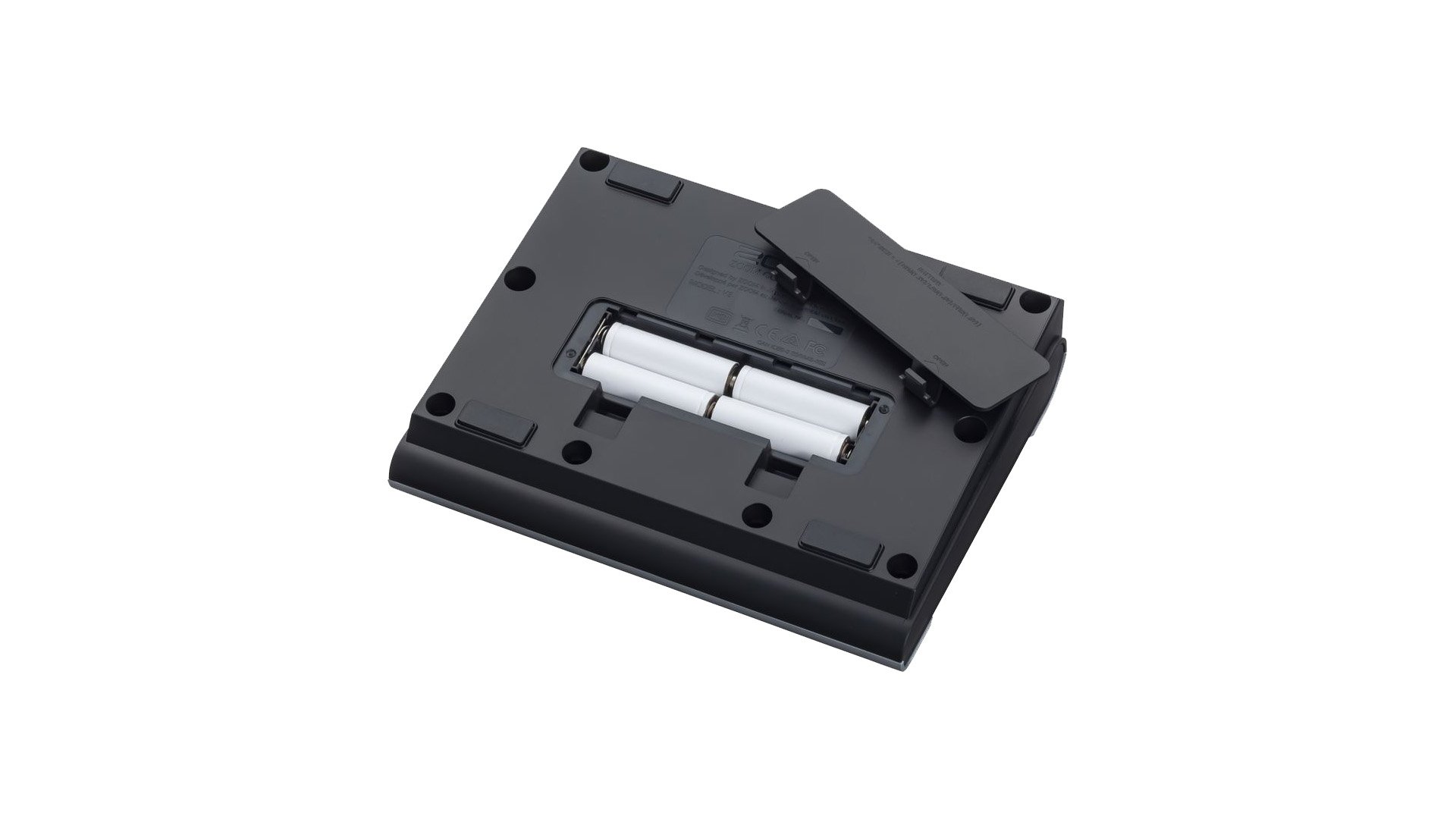

AC adapter (9 V DC 500 mA, center negative) (ZOOM AD-16) 4 AA batteries (about 3.5 hours continuous operation time when using alkaline batteries)
USB: Connector:
Micro USB
Audio interface operation:
2-in/2-out USB2.0 Full Speed, 44.1 kHz, 16/24/32-bit

Power can also be supplied through the USB port.

When using a cable designed only for power, other USB functions cannot be used.
WEIGHTS AND DIMENSIONS
External dimensions:
150 mm (D) × 190 mm (W) × 50 mm (H)
Weight:
0.59 kg (excluding batteries)
