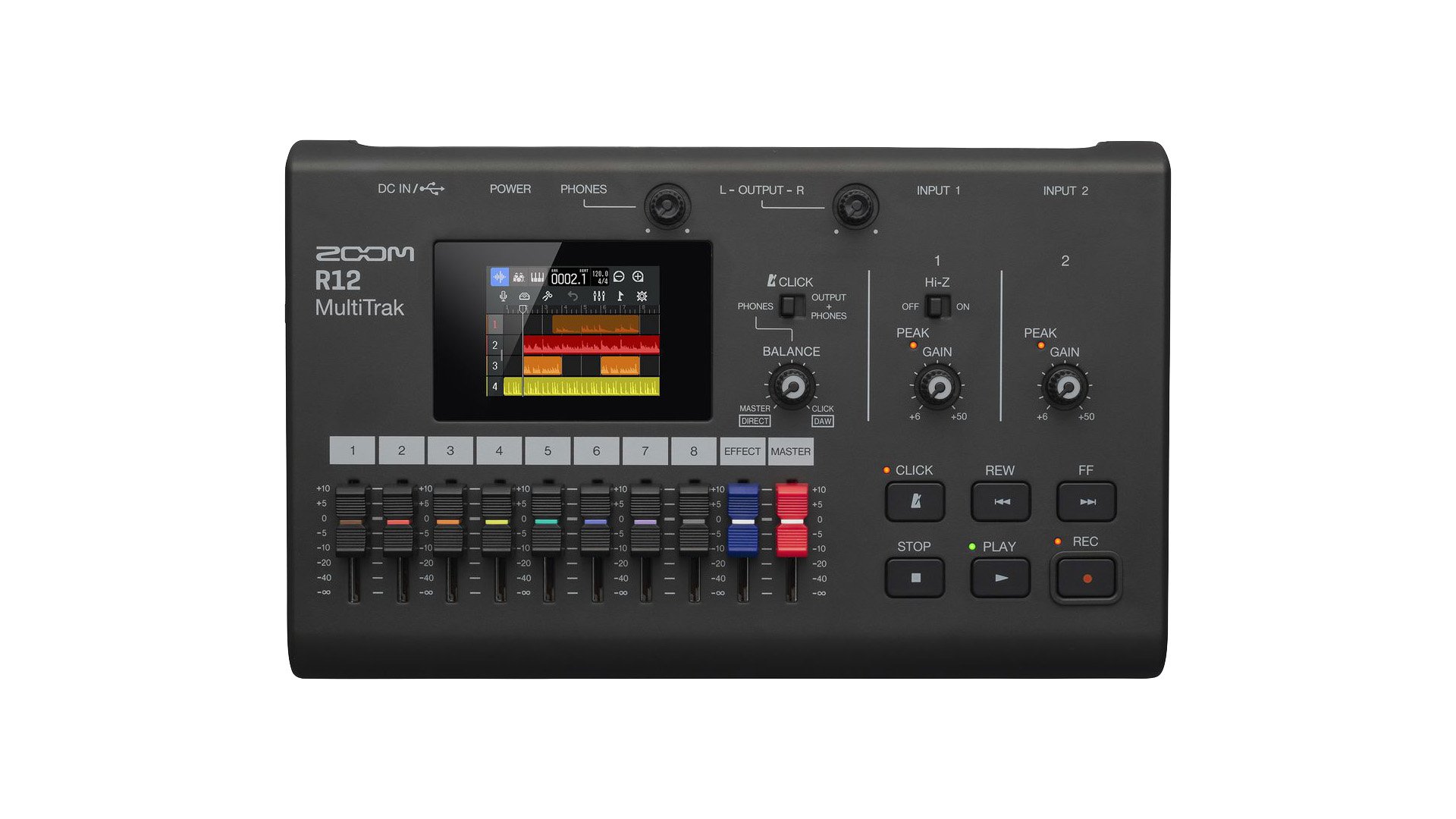

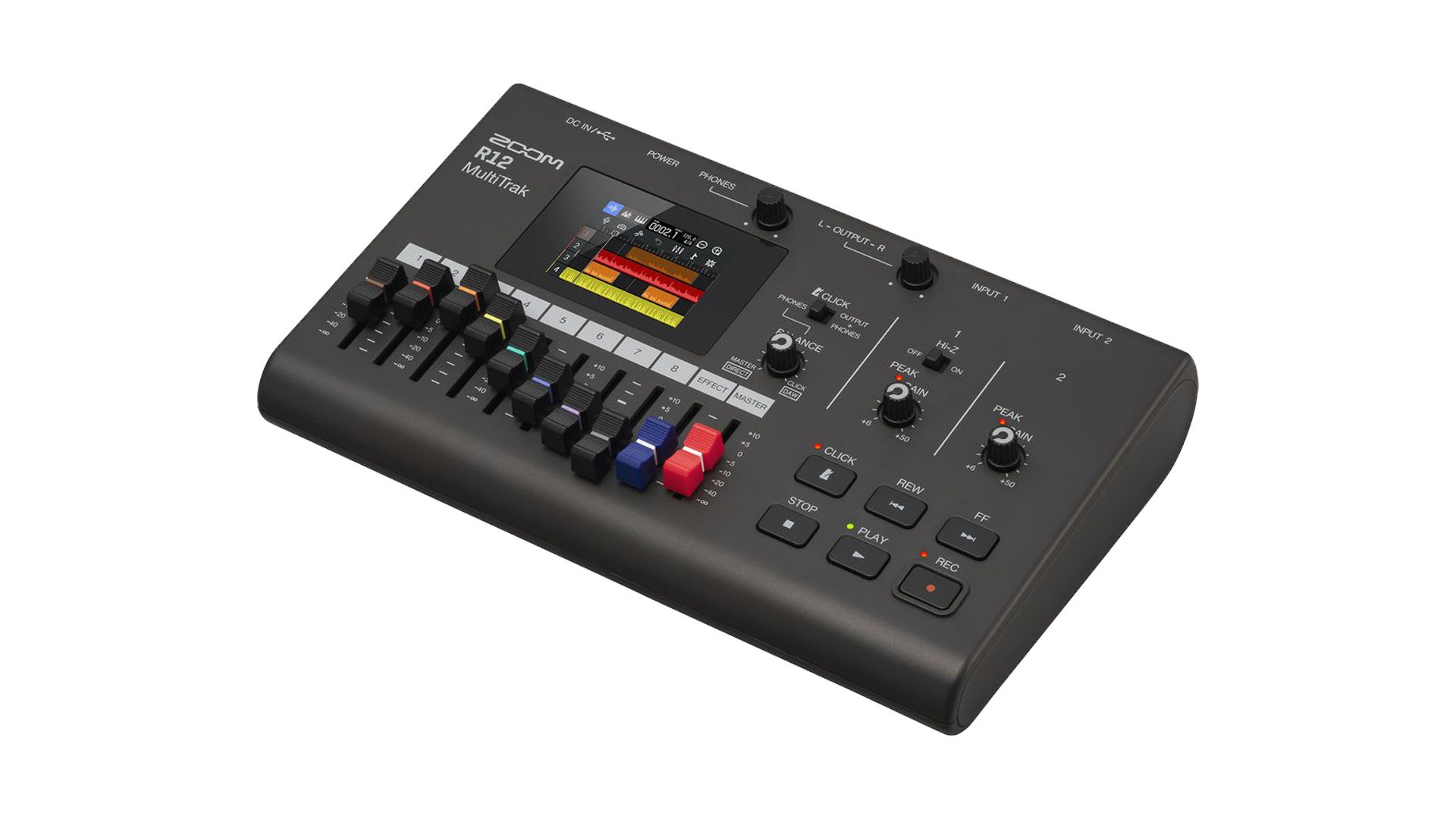

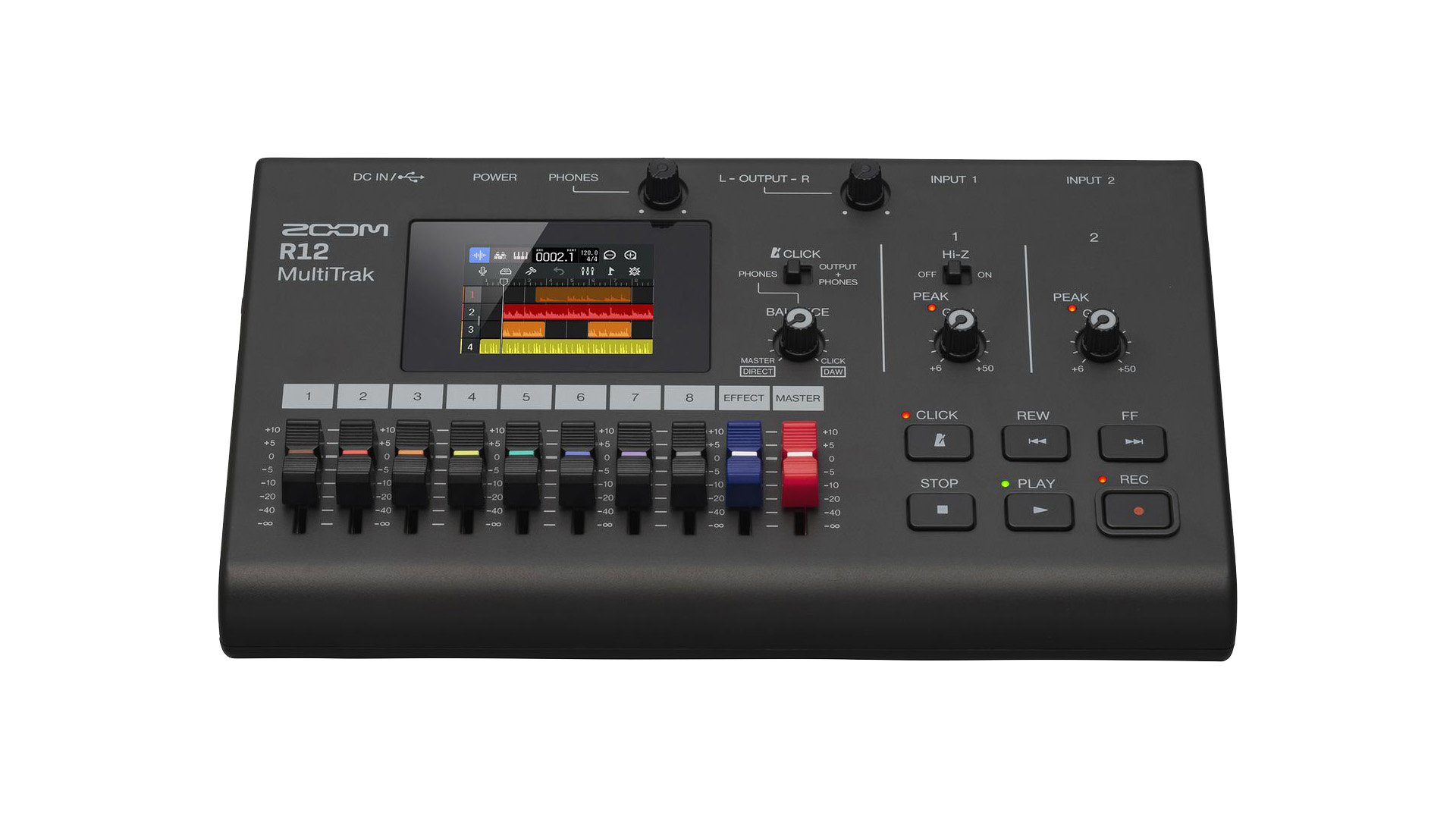

R12 MultiTrak

Specs
INPUTS / OUTPUTS
Inputs
MIC/LINE (mono)
2
Outputs
MASTER OUT
1

PHONES
1
INPUTS
MIC/LINE (mono)

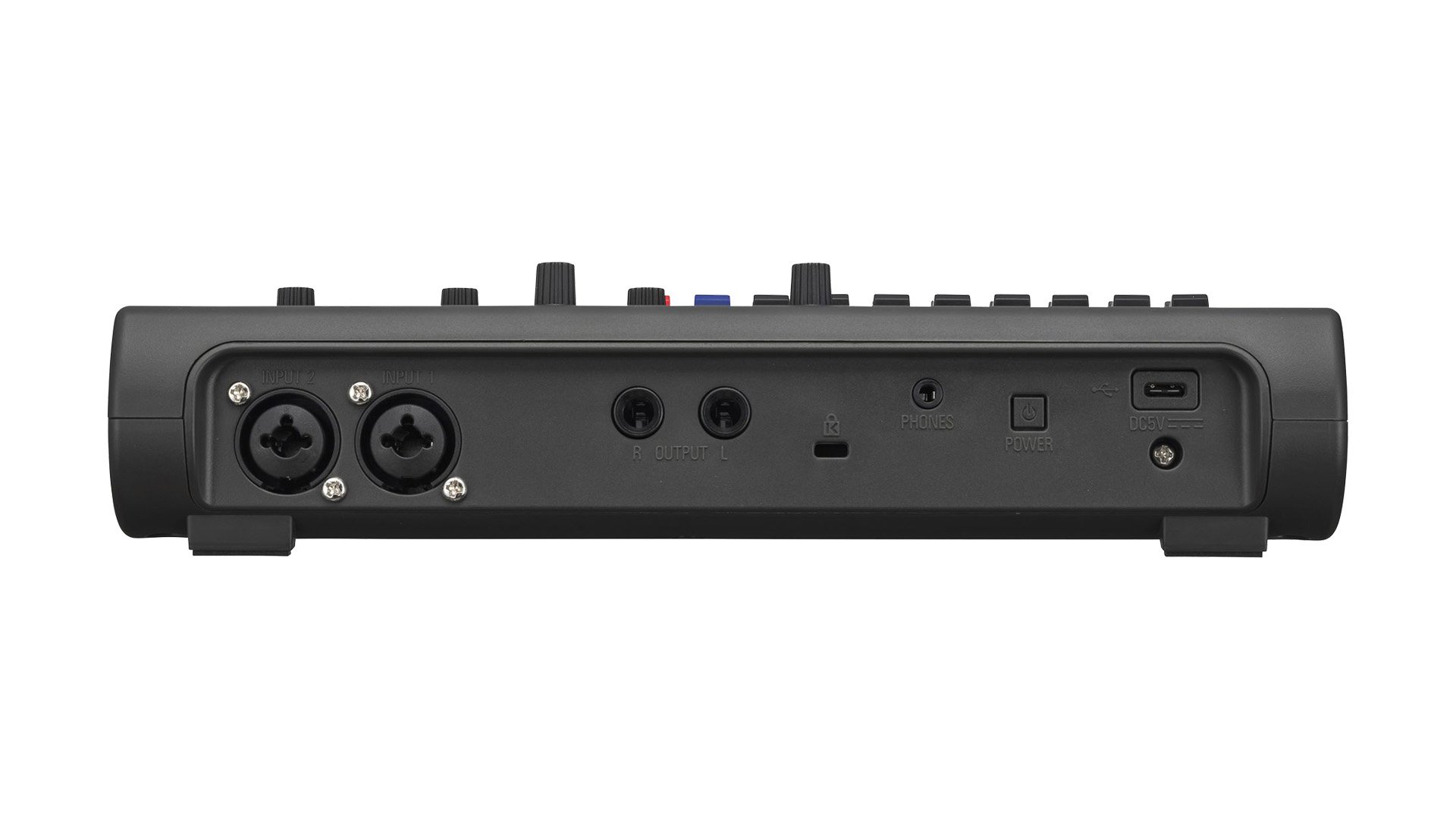

Connectors
2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT / TRS: TIP HOT）

Input gain
+6 ~ +50 dB

Input impedance
XLR: 3.9 kΩ TRS: 3.9 kΩ/1 MΩ (when Hi-Z ON, INPUT 1 only)

Phantom power
+48 V (switchable separately for INPUTS 1 and 2)

Equivalent input noise
–121 dBu or less (IHF-A) at +50 dB/150 Ω input

Frequency response
−1.0/+0.5 dB: 20 Hz – 20 kHz
OUTPUTS
MASTER OUT
Connectors
2 TRS phone jacks (balanced)

Maximum output level
+14 dBu

Output impedance
200 Ω
PHONES
Connectors
1 stereo 3.5mm mini jack

Maximum output level
45 mW + 45 mW (into 32 Ω load)

Output impedance
10 Ω
RECORDER

Maximum simultaneous recording tracks
2

Maximum simultaneous playback tracks
8

Recording format
44.1kHz, 16/24-bit, mono/stereo WAV

Recording media
Cards compatible with microSDHC specifications 4 GB – 32 GB


Cards compatible with microSDXC specifications 64 GB – 1 TB
TRACK SETTINGS

EQ
High: 10 kHz, ±12 dB, shelving


Middle: 2.5 kHz, ±12 dB, peaking


Low: 100 Hz, ±12 dB, shelving

Pan
L100 – R100
EFFECTS

Input Dynamics
Comp/Limiter/Gate

Patch memory effects
3 types can be used simultaneously


50 patch memories


Guitar Lab supported


Can be assigned and used as an insert (input) or send effect

Dedicated send effects
10 types of spatial effects
TUNER

Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD
CLICK (METRONOME)

Time signatures
3/4, 4/4, 6/8

Tempo range
40.0 – 250.0 BPM
RHYTHM LOOPS

Sound source format
PCM

Number of loops
150
SYNTH

Sound source format
FM

Polyphony
8

Number of sound types
18 (and a PCM drum kit)
DISPLAY

2.4"  (320×240) full-color touchscreen LCD
USB
Connector

USB Type-C


Note: Use a USB cable that supports data transfer. USB bus power is supported.
Audio interface function
2-in/2-out or 2-in/2-out (iPad)
USB 2.0 Full Speed


44.1 kHz, 16/24-bit

2-in/4-out
USB 2.0 High Speed


44.1 kHz, 16/24-bit
Mass storage function
Device
USB 2.0 High Speed (5 V/200 mA power supplied when host)
Guitar Lab connection

USB 1.1 Full Speed
DAW connection (control surface)

USB 1.1 Full Speed
Mass storage function
Host
USB 2.0 High Speed (5V/200 mA power supplied)
USB MIDI keyboard connection

USB 1.1 Full Speed (5 V/200 mA power supplied)
POWER

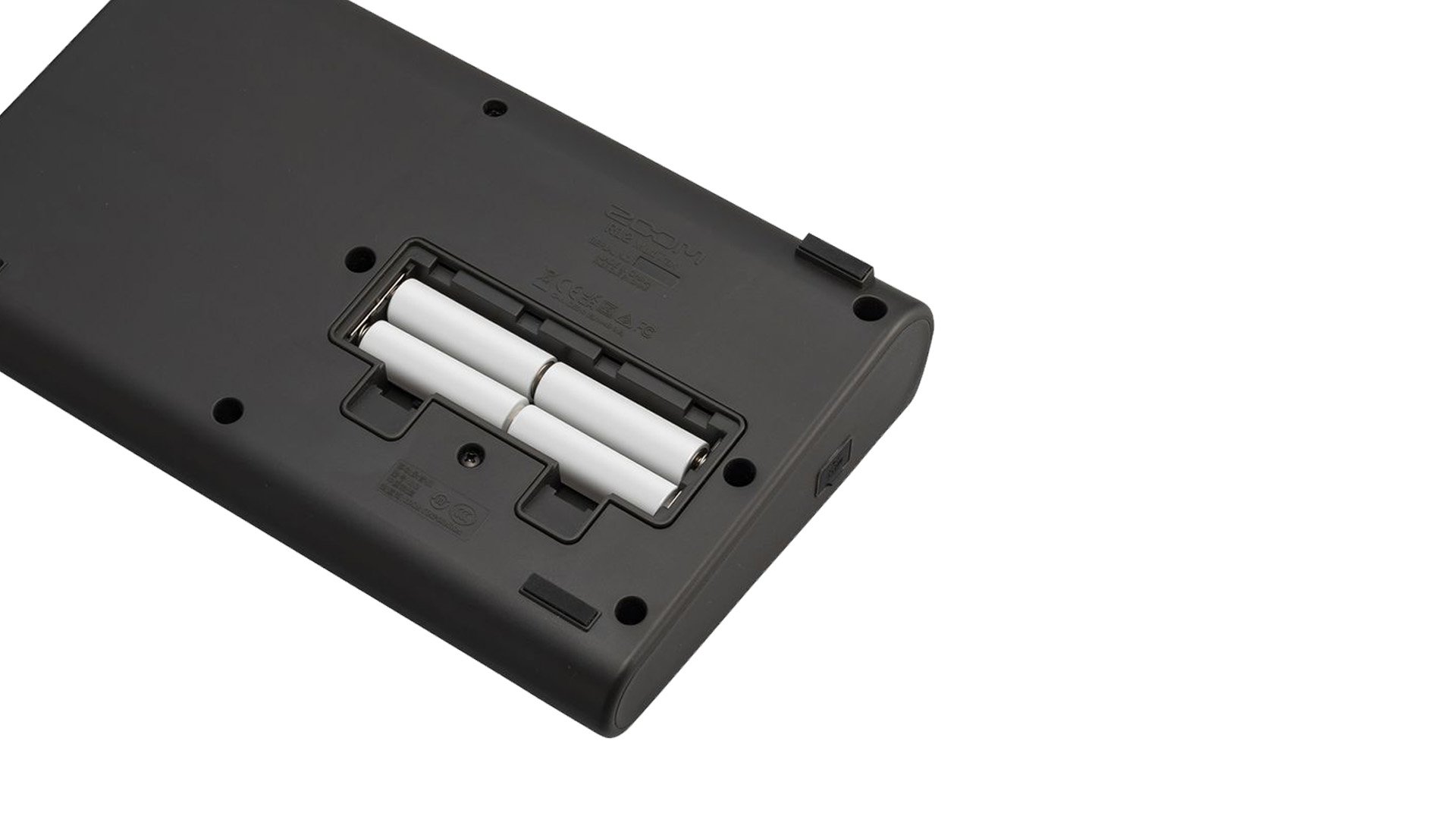

Batteries: 4 AA (alkaline, lithium, or rechargeable NiMH)

AC adapter: ZOOM AD-17 (5V/1.0A)
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES

During playback with +48V off and 32Ω headphone load

Alkaline batteries: about 5 hours

NiMH batteries (1900 mAh): about 5 hours

Lithium batteries: about 11 hours

• The above values are approximate. • Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
POWER CONSUMPTION

5 W maximum
DIMENSIONS

256 mm (W) × 158 mm (D) × 61 mm (H)
WEIGHT (including batteries)

827 g
Note: 0 dBu = 0.775 Vrms
