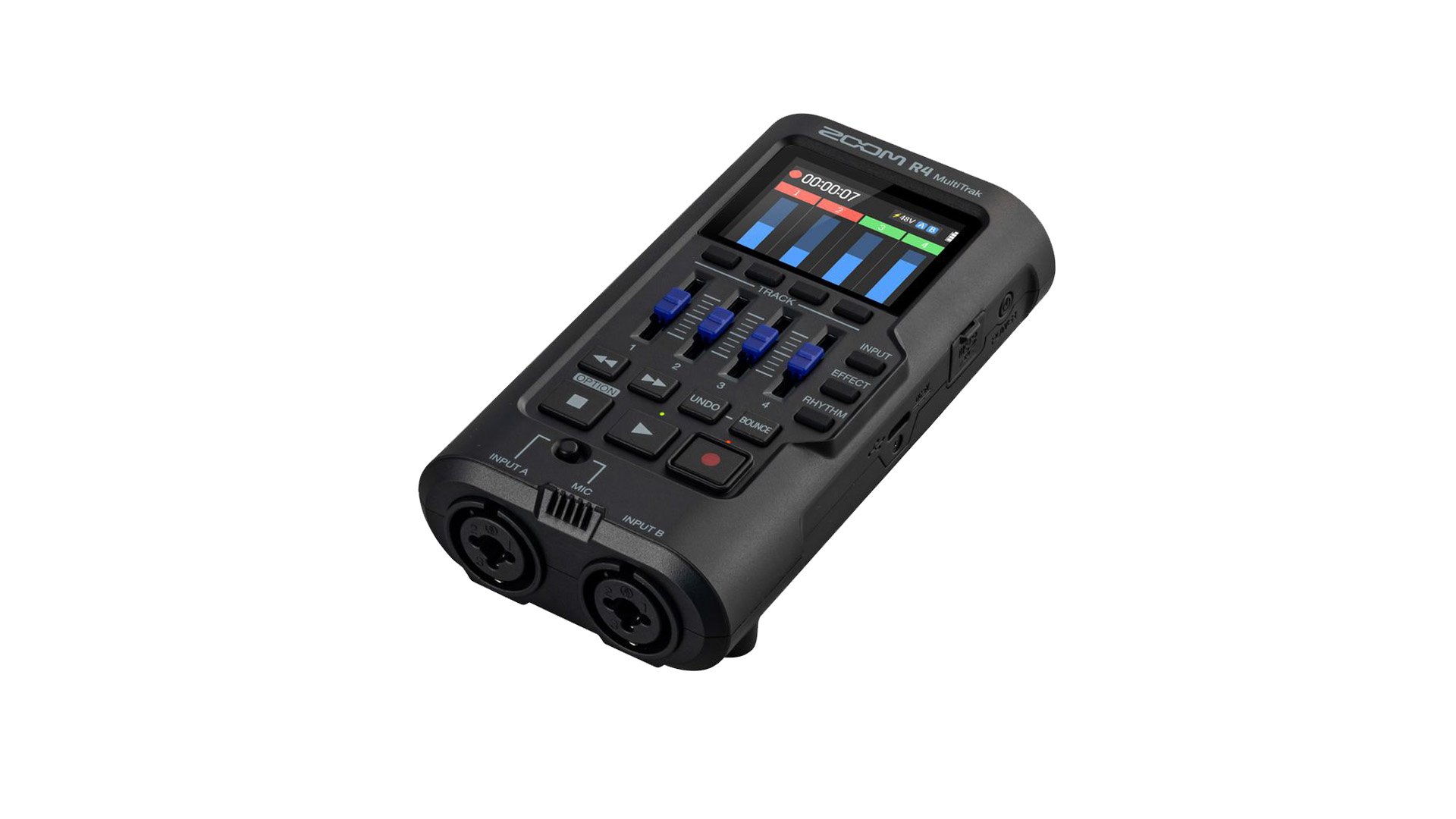

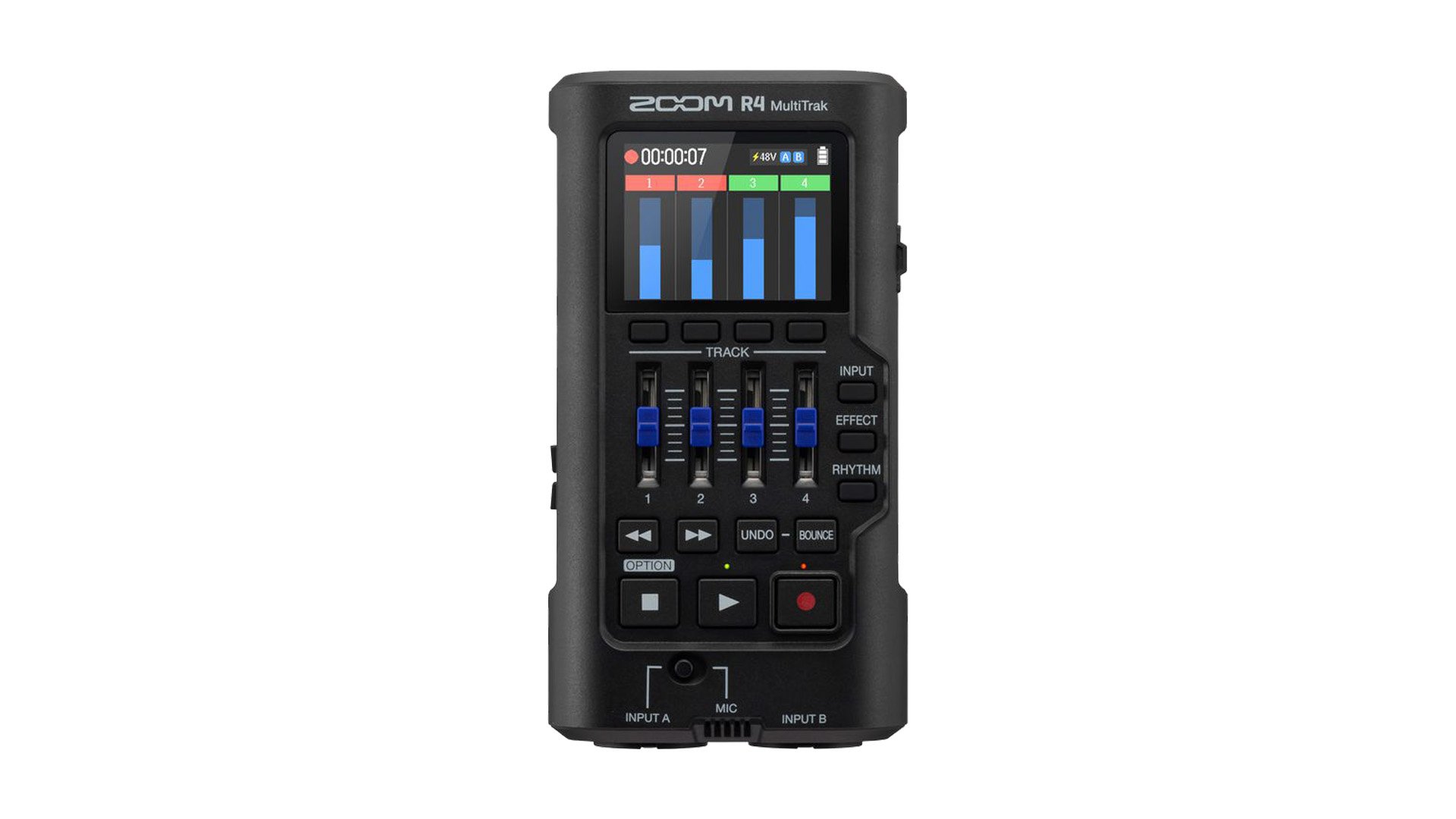

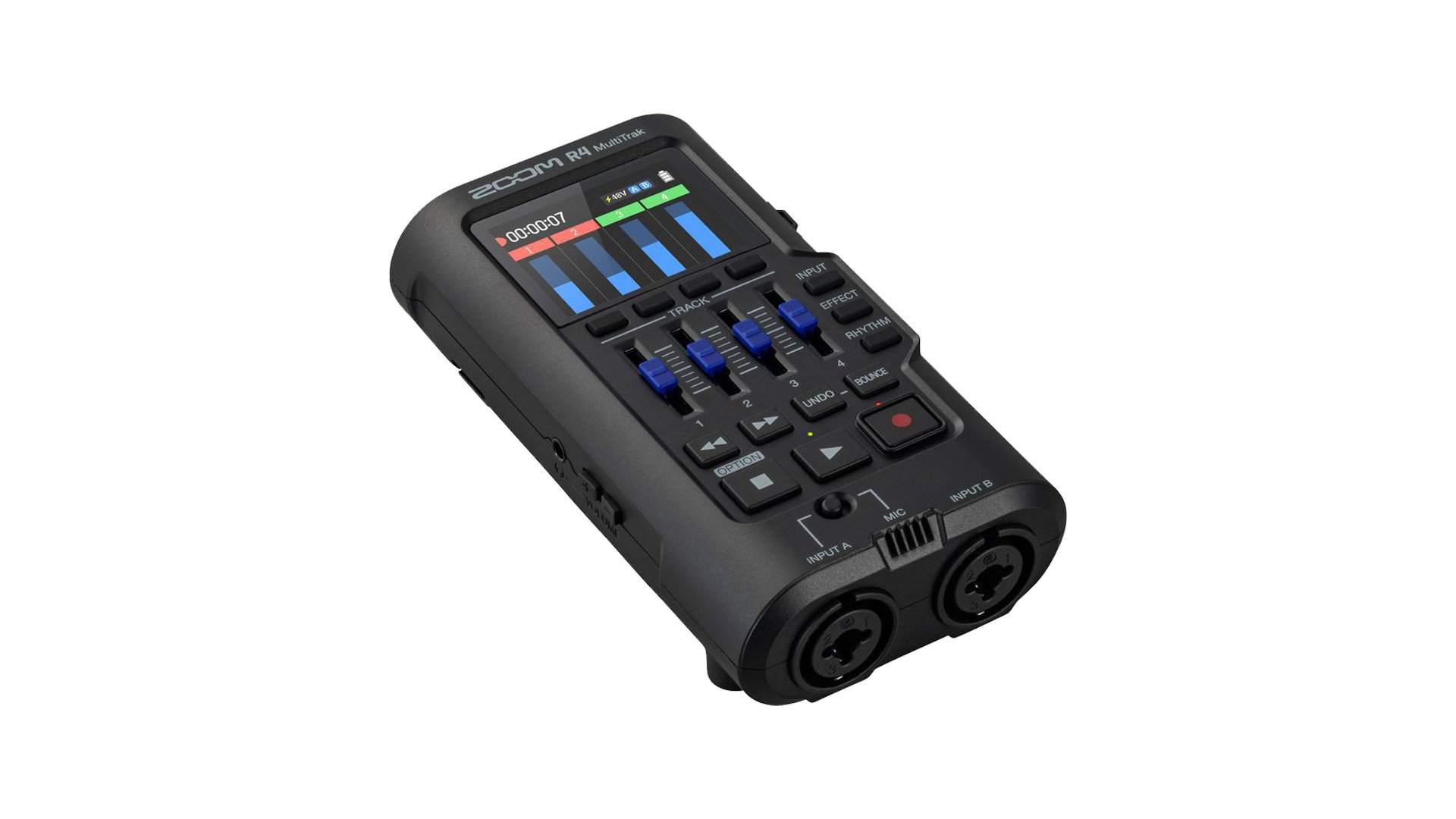

R4 MultiTrak

Specs
INPUTS / OUTPUTS
Inputs
Built-in mic (mono)
1

XLR/TS inputs (mono)
2
Output
Headphones
1



Inputs
XLR/TRS inputs
Connectors
2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT）

Input gain
No adjustment required (dual A/D converter circuit used)

Input impedance
XLR: 2.3 kΩ


TS: 1 MΩ

Maximum input level
XLR: +4 dBu


TS: +10 dBu

Phantom power
+48 V (switchable separately for INPUTS A and B)

Equivalent input noise
XLR: −120 dBu or less (IHF-A)


TS: −107 dBu or less (IHF-A)

Frequency response
XLR: -0.5 /+0.0 dB : 20 Hz - 20 kHz


TS: -0.2 /+0.0 dB : 20 Hz - 20 kHz
Built-in mic input
Directionality
Omnidirectional

Input gain
No adjustment required (dual A/D converter circuit used)

Maximum sound pressure input
115 dB SPL



Output
Headphones
Connector
1 stereo 3.5mm mini jack

Output impedance
10 Ω

Maximum output level
20 mW + 20 mW (into 32Ω load)



Recorder

Maximum simultaneous recording tracks
2

Recording format
WAV: 48kHz, 32-bit float, mono

Recording media
Cards compatible with microSDHC specifications 4 GB – 32 GB


Cards compatible with microSDXC specifications 64 GB – 1 TB



Display

2" full-color LCD (240 × 320)


USB
Connector

USB Type-C


Note: Use a USB cable that supports data transfer. USB bus power is supported.
Audio interface function
Class
USB 2.0 High Speed

Sampling frequency
48 kHz

Bit rate
24-bit/32-bit float

Input / output channels
2 in/2 out
Mass storage function

USB2.0 High Speed



Power supply

Batteries: 4 AA (alkaline, lithium, or rechargeable NiMH)

AC adapter: ZOOM AD-17 (5V/1.0A)

* USB bus power is supported.


Estimated continuous operation time using batteries

Alkaline batteries: about 7 hours

NiMH batteries (1900 mAh): about 6 hours

Lithium batteries: about 14 hours

* Use conditions: Recording 1 track, playing 1 track, phantom power off, headphones into 32Ω load, power saving on

* The above values are approximate. * Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.


Power consumption

5 W


External dimensions

74 mm (W) × 138 mm (D) × 36 mm (H)


Weight (including batteries)

287 g



Note: 0 dBu = 0.775 Vrms
