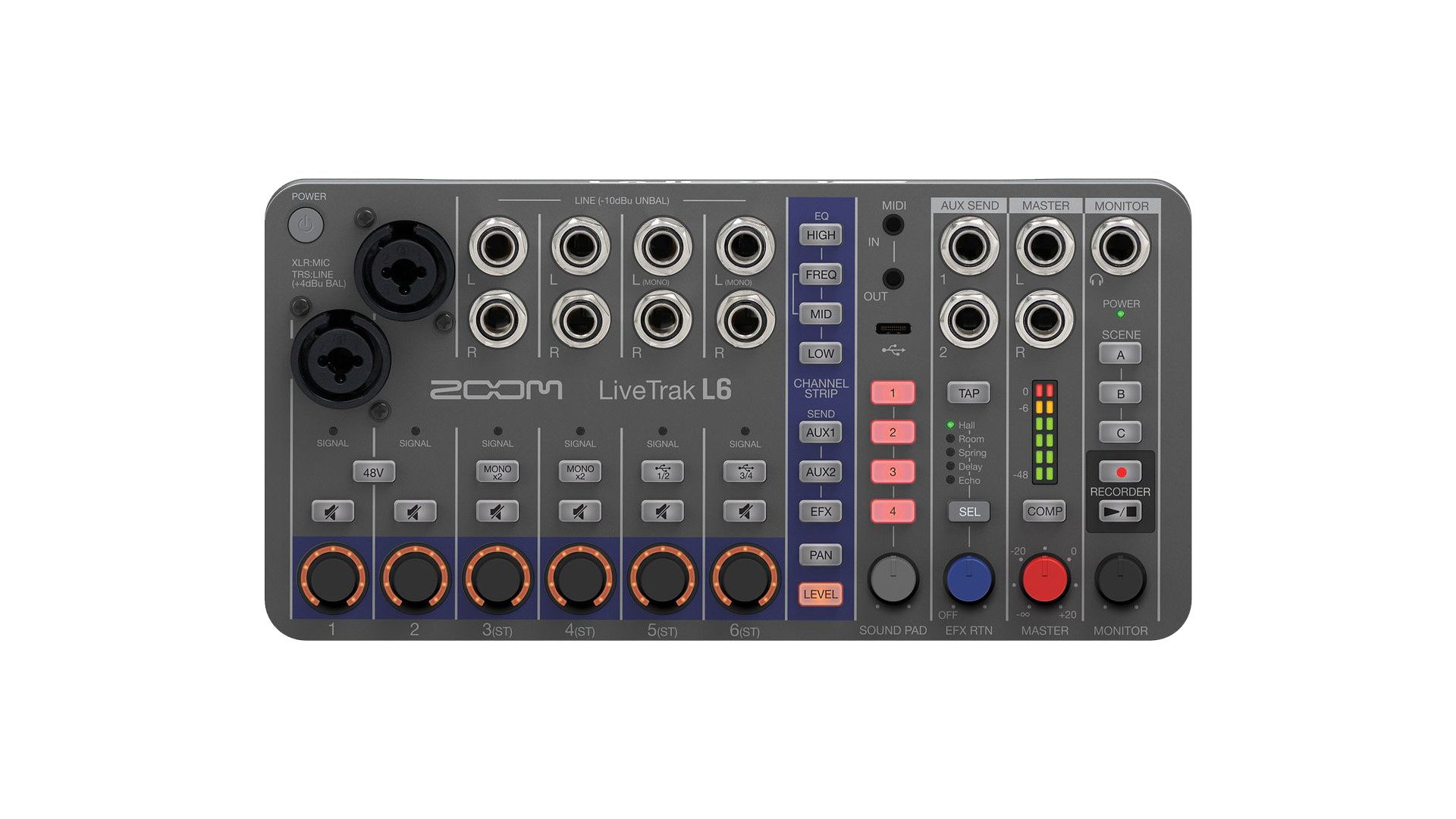

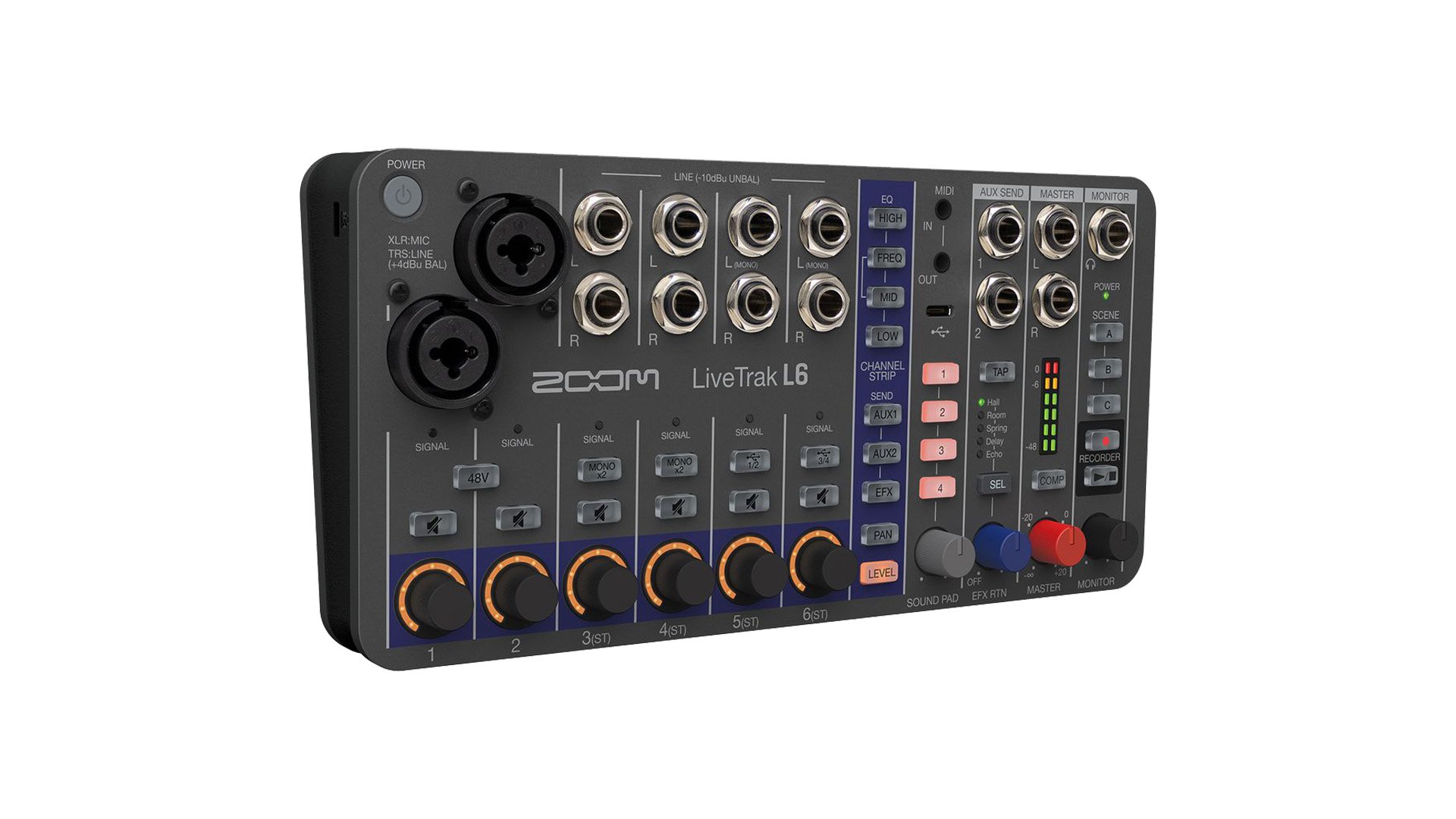

The LiveTrak L6

Specs
Input and output channels
Inputs
MIC/LINE (mono)
2

LINE (stereo)
4
Outputs
AUX SEND (mono)
2

MASTER (stereo)
1

MONITOR (stereo)
1



Inputs
MIC/LINE
Connectors
2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)

Input gain
Adjustment unnecessary (dual A/D converter circuits used)

Input impedance
XLR: 3.8 kΩ or more


TRS: 39 kΩ or more

Maximum input level
XLR: +4 dBu


TRS: +24 dBu

Phantom power
+48 V


Channel total of 10 mA or less
LINE
Connectors
8 TS phone jacks (unbalanced)

Input impedance
10 kΩ

Maximum input level
+9 dBu



Outputs
AUX SEND
Connectors
2 TRS phone jacks (impedance balanced)

Maximum output level
+9.5 dBu

Output impedance
147 Ω
MASTER
Connectors
2 TRS phone jacks (balanced)

Maximum output level
+15 dBu

Output impedance
147 Ω
MONITOR
Connector
TRS phone jack

Maximum output level
50 mW + 50 mW (63 Ω load)

Output impedance
14.7 Ω



Buses
MASTER
1
AUX SEND
2
SEND EFX
1


Channel strip
3 BAND EQ
HIGH
10 kHz, ±15 dB, shelving

MID
100 Hz – 8 kHz, ±15 dB, peaking

LOW
100 Hz, ±15 dB, shelving



Level meters

6 segments


Send effects

5 types


Recorder
Maximum simultaneous recording tracks
12
Maximum simultaneous playback tracks
2
Recording formats
48 kHz, 32-bit float, mono/stereo WAV
Recording media
microSDHC memory cards (Class 10 or higher)

microSDXC memory cards (Class 10 or higher)


Audio interface
Input and output channels
Input: 12 channels

Output: 4 channels
Sampling frequency
48 kHz
Bit depth
32-bit float / 24-bit
Interface
USB 2.0


Card reader

Mass storage class USB 2.0 High Speed


Sampling frequency

48 kHz


Frequency response

20 Hz – 20 kHz / -1.0 dB


Equivalent input noise

-120 dBu or less (IHF-A) at 150Ω input


Power

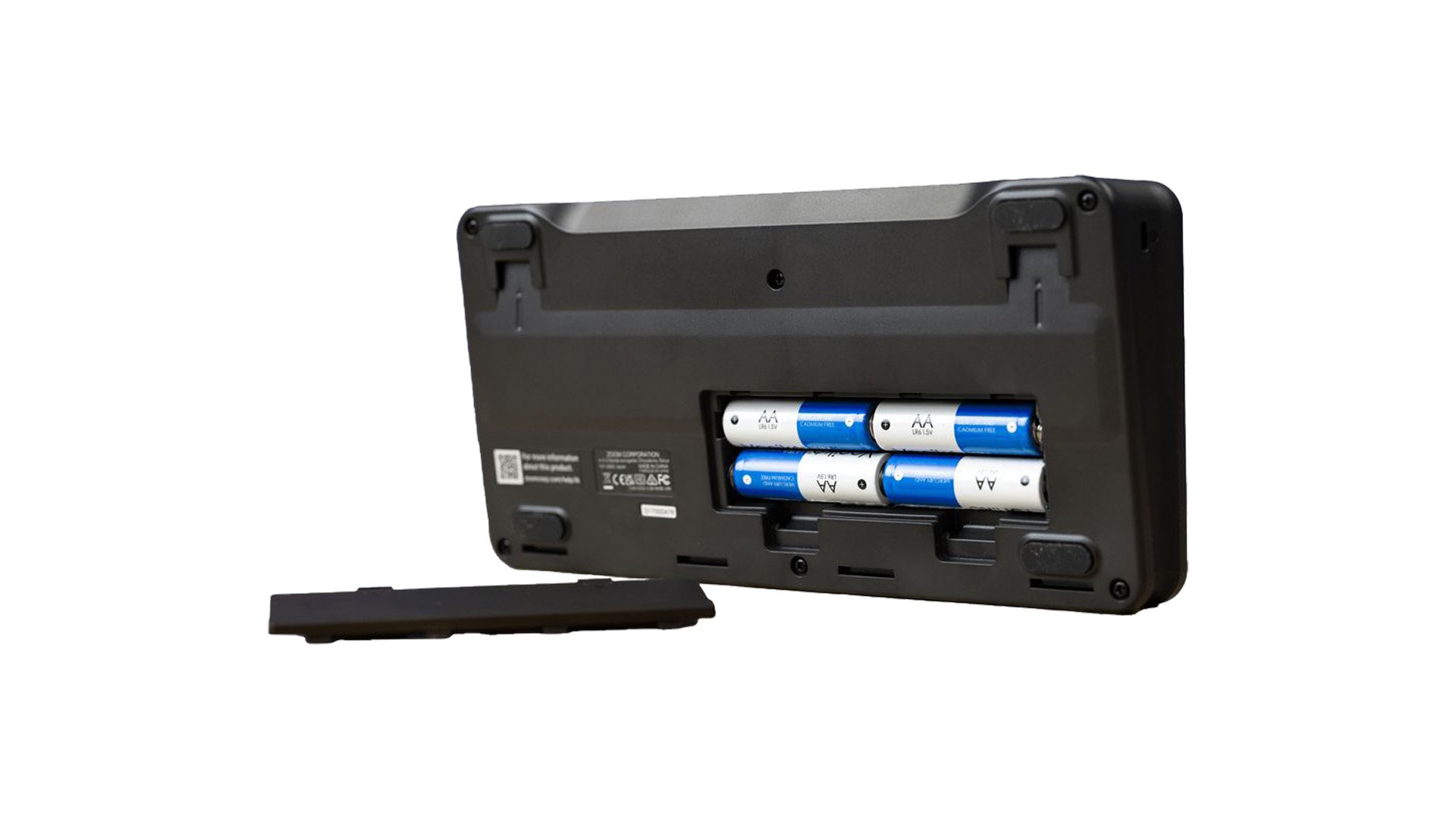

4 AA batteries
Alkaline, Lithium, or Rechargeable NiMH
AC adapter
ZOOM AD-17 : DC 5V/1A

• USB bus power is supported.


Estimated continuous recording time using batteries
Alkaline batteries
About 3 hours
NiMH batteries (1900 mAh)
About 3.5 hours
Lithium batteries
About 7 hours


12-track recording, phantom power off, headphones used (63Ω load), no MASTER output connections
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.
Power consumption
5 W maximum
Dimensions
223 mm (W) × 114 mm (D) × 46.5 mm (H)
Weight (main unit only)
526 g
Weight (including batteries)
618 g


Note: 0 dBu = 0.775 Vrms
