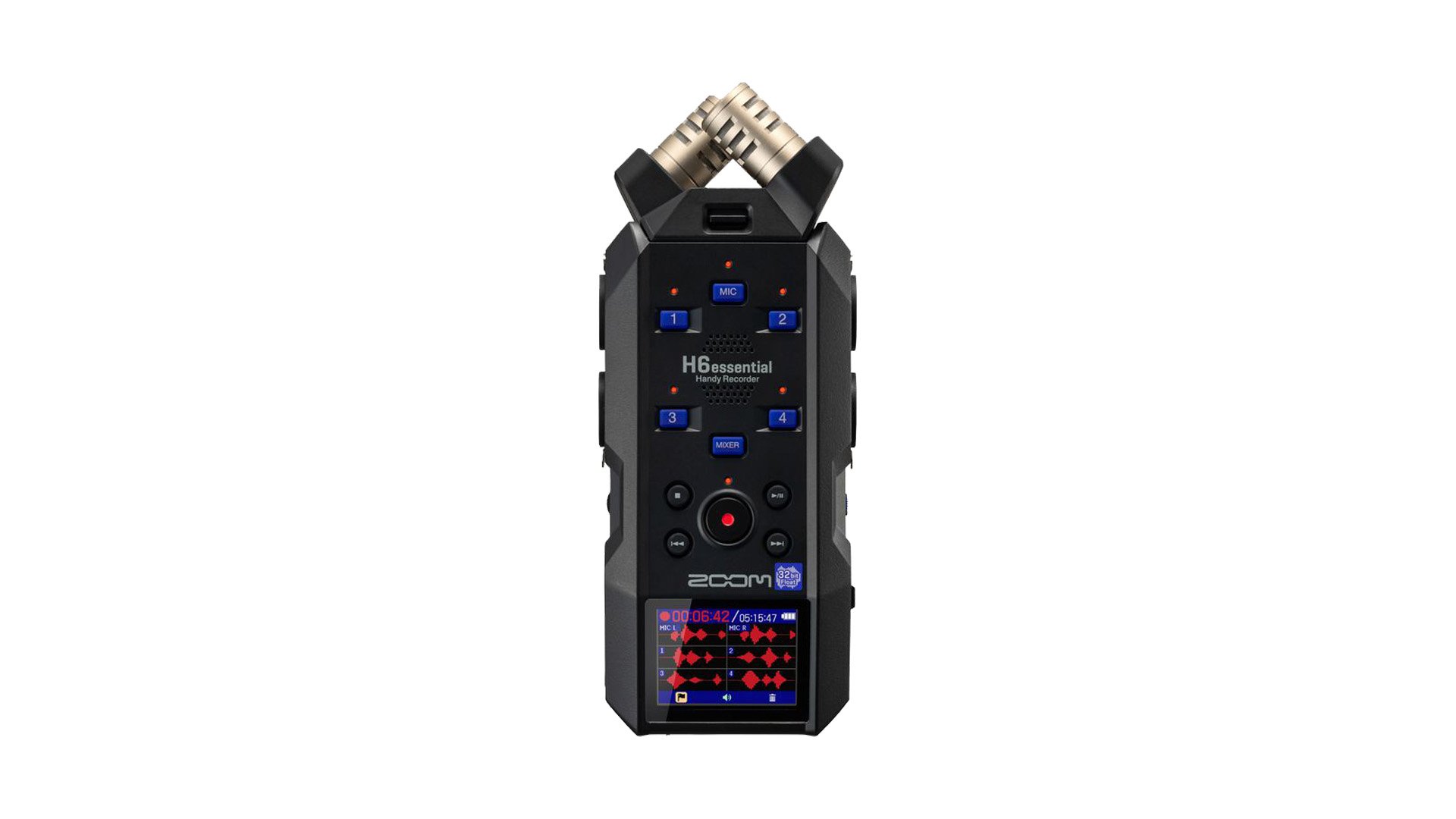

H6e

Specs
INPUT AND OUTPUT CHANNELS
Inputs
Mic capsule
1

MIC/LINE (mono)
4
Outputs
LINE OUT
1

Headphones
1

Built-in speaker (mono)
1



INPUTS
XY mic: XYH-6e
90º XY stereo format


Directionality
Unidirectional

Sensitivity
−42dB/1Pa at 1kHz

Maximum sound pressure input
135 dB SPL
MIC/LINE (mono)

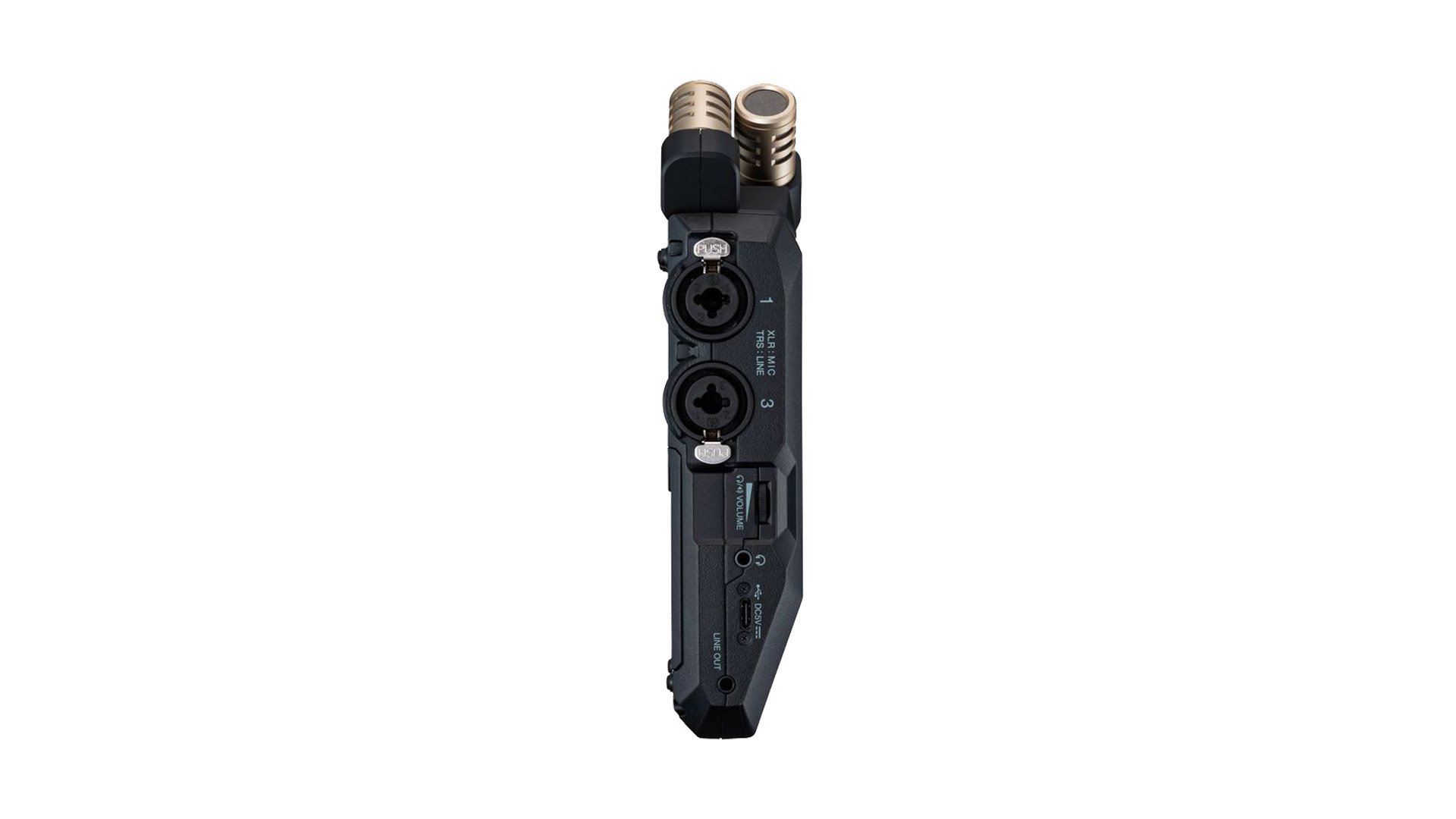

Connectors
4 XLR/TRS combo jacks


(XLR：2 HOT TRS：TIP HOT）

Input gain
Adjustment unnecessary (dual A/D converter circuits used)

Input impedance
MIC: 3.8 kΩ or more


LINE: 39 kΩ or more

Maximum input level
MIC: +4 dBu


LINE: +24 dBu

Phantom power
+48 V


Channel total 32 mA or less

Equivalent input noise
MIC: -120 dBu or less（IHF-A) @150 Ω input


LINE: -95 dBu or less（IHF-A) @600 Ω input



OUTPUTS
LINE OUT
Connector
Stereo mini jack

Maximum output level
+1 dBu

Output impedance
110 Ω or less
Headphones
Connector
Stereo mini jack

Maximum output level
20 ｍW + 20 ｍW（when 32 Ω load）

Output impedance
10 Ω or less
Built-in speaker
Type
20 mm x 30mm elliptical dynamic speaker

Effective maximum output
250mW



RECORDER
Maximum simultaneous recording tracks
8
Maximum simultaneous playback tracks
6
Recording formats
WAV

44.1/48/96 kHz,

32-bit float mono/stereo

BWF and iXML formats supported
Recording media
4-32GB cards compatible with the microSDHC specification

64GB–1TB cards compatible with the microSDXC specification


DISPLAY

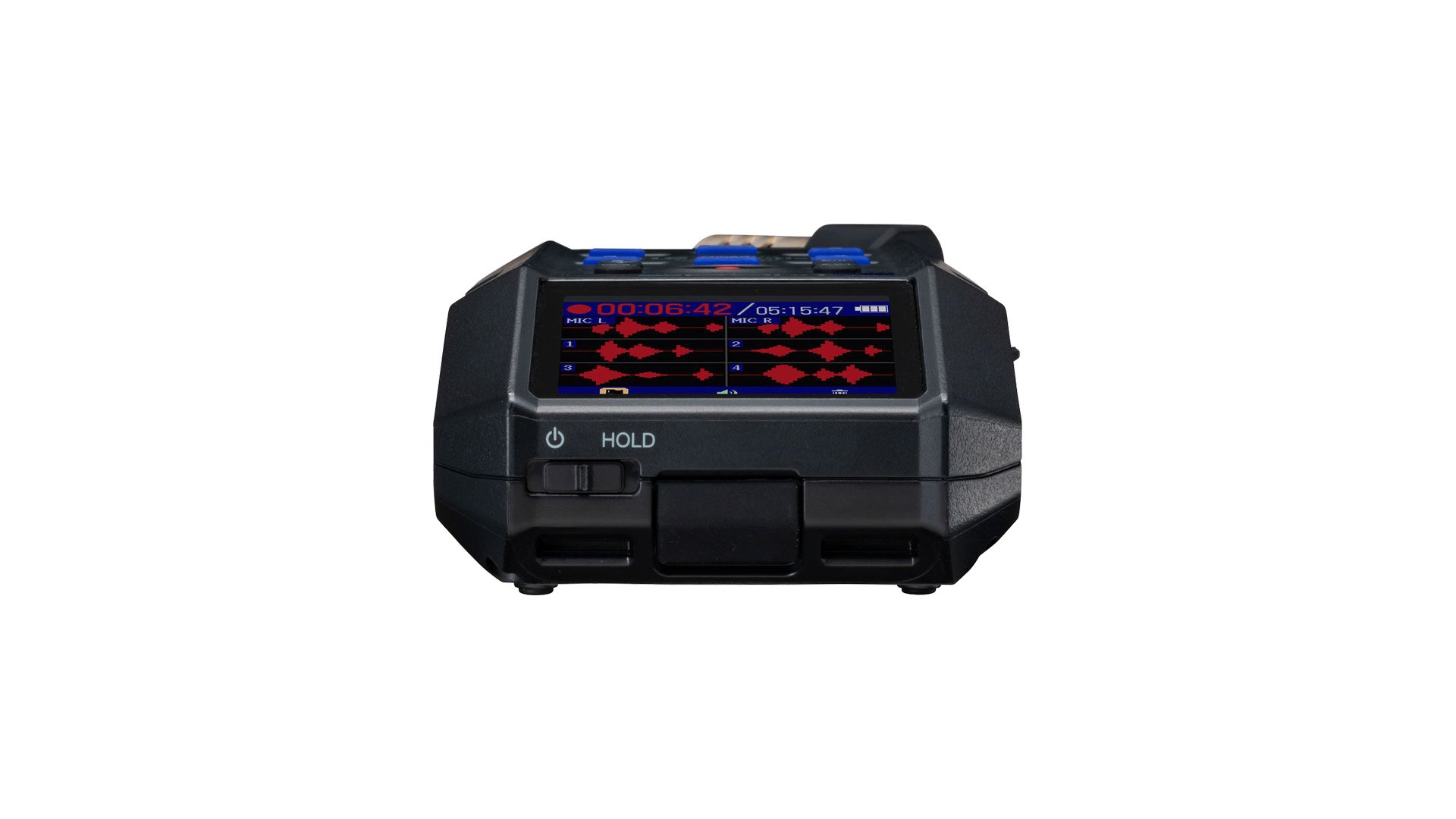

2.0-inch full-color LCD
360 x 240


USB
Connector

USB Type-C


• Use a USB cable that supports data transfer.
Audio Interface

USB 2.0 High Speed

Input and output channels
6 in / 2 out (Multi)


2 in / 2 out (Stereo)

Sampling frequency
44.1/48/96 kHz (AIF only)


44.1/48 kHz (AIF + onboard recording)

Bit depth
24-bit, 32-bit float
File transfer

USB 2.0 High Speed



REMOTE
Dedicated wireless adapter
ZOOM BTA-1


POWER
4 AA batteries
Alkaline, lithium or rechargeable NiMH batteries
AC Adapter
ZOOM AD-17 (DC 5 V/1 A)

• USB bus power is supported.


ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 2-track recording (XYH-6e)
Alkaline batteries
About 18 hours
NiMH batteries (1900 mAh)
About 14.5 hours
Lithium batteries
About 30 hours


48 kHz/32-bit float with phantom power off, no headphones, no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.
ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 6-track recording (XYH-6e and inputs 1–4)
Alkaline batteries
About 3.5 hours
NiMH batteries (1900 mAh)
About 4 hours
Lithium batteries
About 9 hours


48 kHz/32-bit float with phantom power off, headphones used (33Ω load), no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.
Power consumption
5 W maximum
Dimensions
Recorder: 78.1 mm (W) × 160.1 mm (D) × 42.8 mm (H)

XYH-6e: 69.1 mm (W) × 50.8 mm (D) × 43.0 mm (H)
Weight
Recorder: 381 g (including batteries)

XYH-6e: 42 g


Note: 0 dBu = 0.775 Vrms
