H2e

Specs
Inputs
MID mic (FRONT/REAR)
Pickup pattern
Unidirectional

Sensitivity
–37 dB/Pa at 1 kHz

Maximum sound pressure input
120 dB SPL
SIDE mic
Pickup pattern
Bidirectional

Sensitivity
–39 dB/Pa at 1 kHz

Maximum sound pressure
122 dB SPL

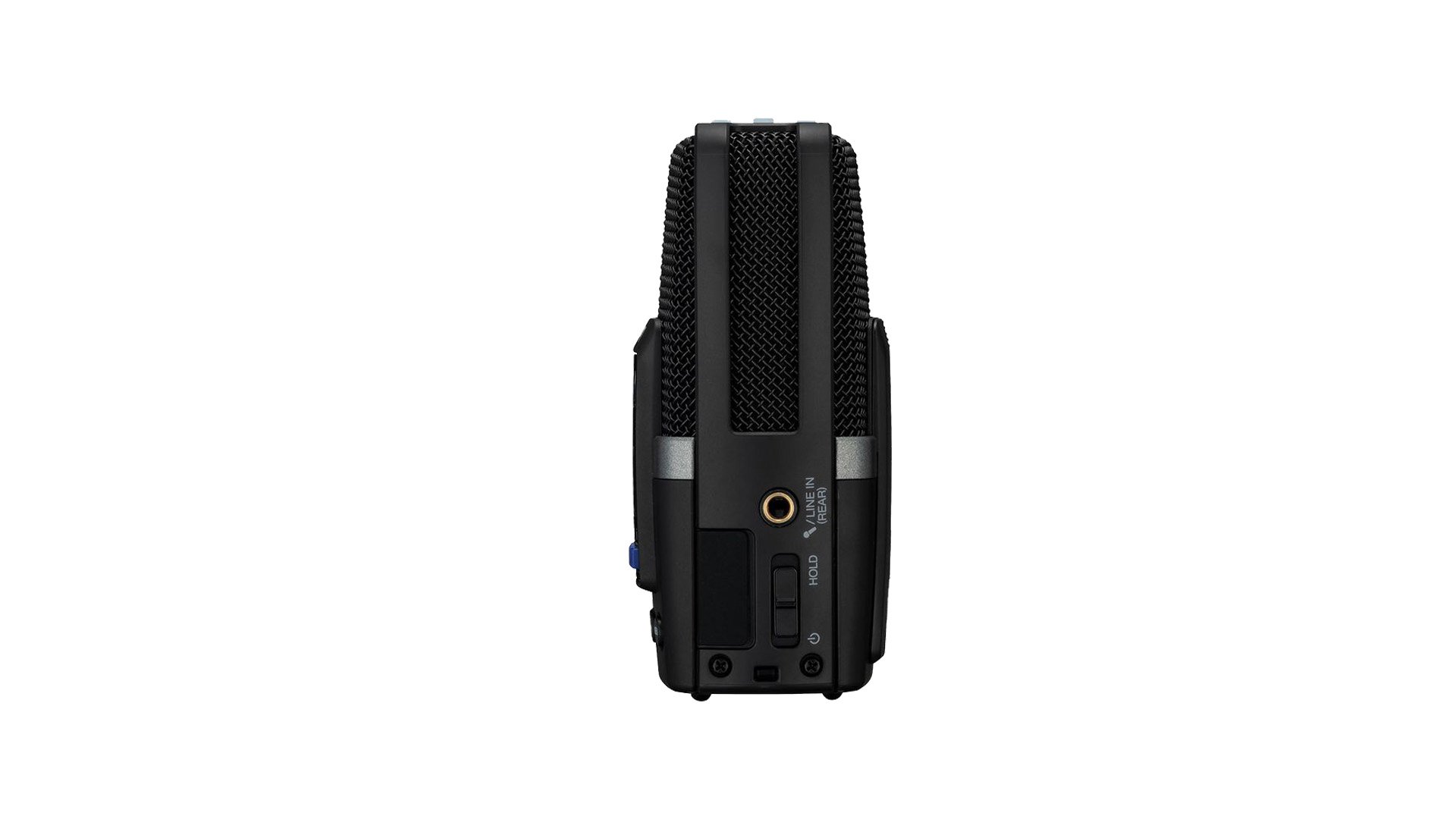

MIC/LINE IN jack
Connector
Stereo mini jack

Input impedance
2 kΩ

Maximum input level
−7 dBu

Plug-in power
3.3 V



Outputs

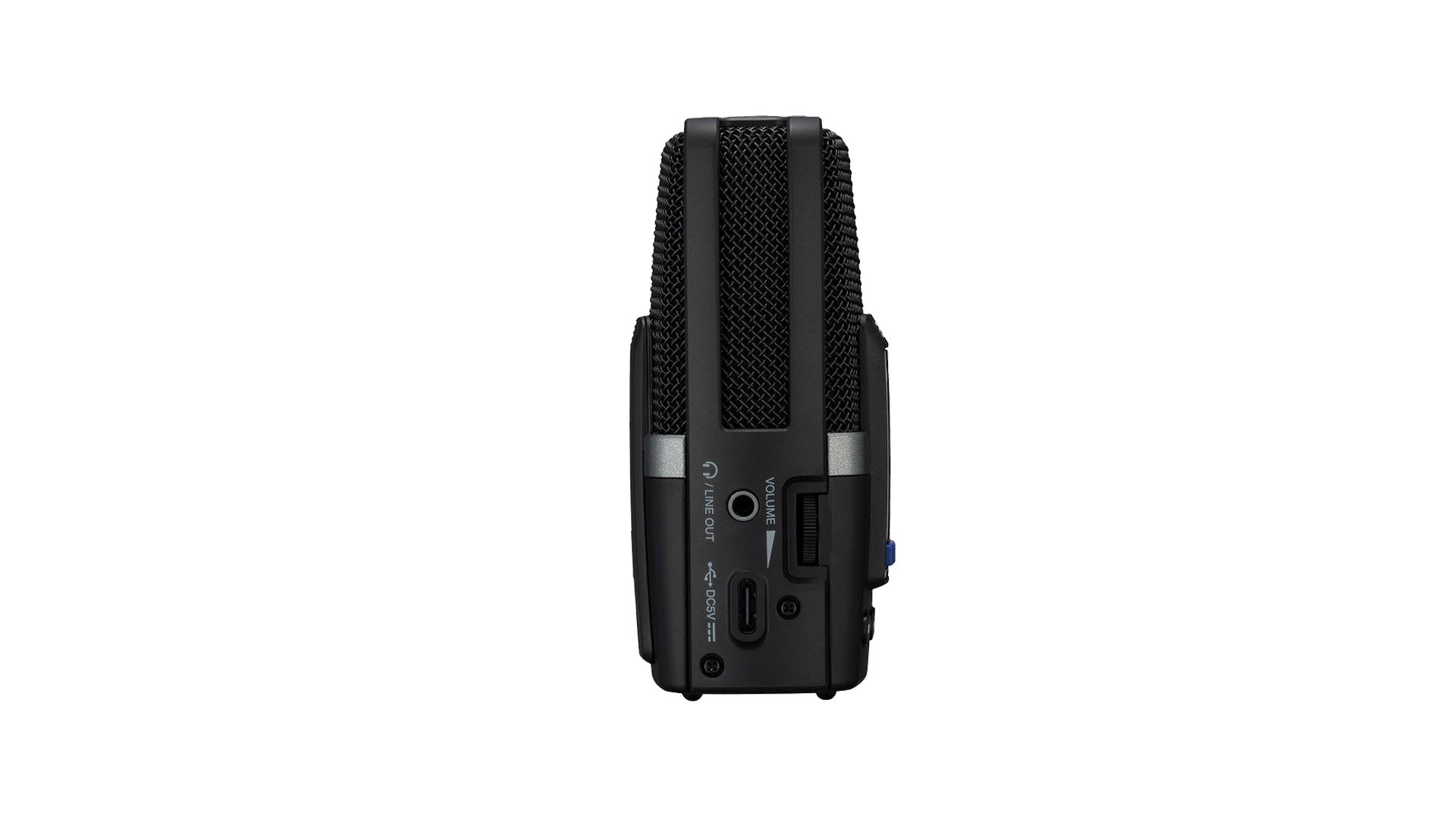

PHONE/LINE OUT jack
Connector
Stereo mini jack

Maximum output level
20 mW + 20 mW (when 32 Ω load)

Output impedance
10 Ω or less
Built-in speaker
Type
20 mm × 30 mm elliptical dynamic speaker

Effective maximum output
250 mW



Recorder
Recording format
WAV

44.1, 48 or 96 kHz / 32-bit float

Stereo / mono

BWF and iXML formats supported
Recording media
microSDHC memory cards

microSDXC memory cards

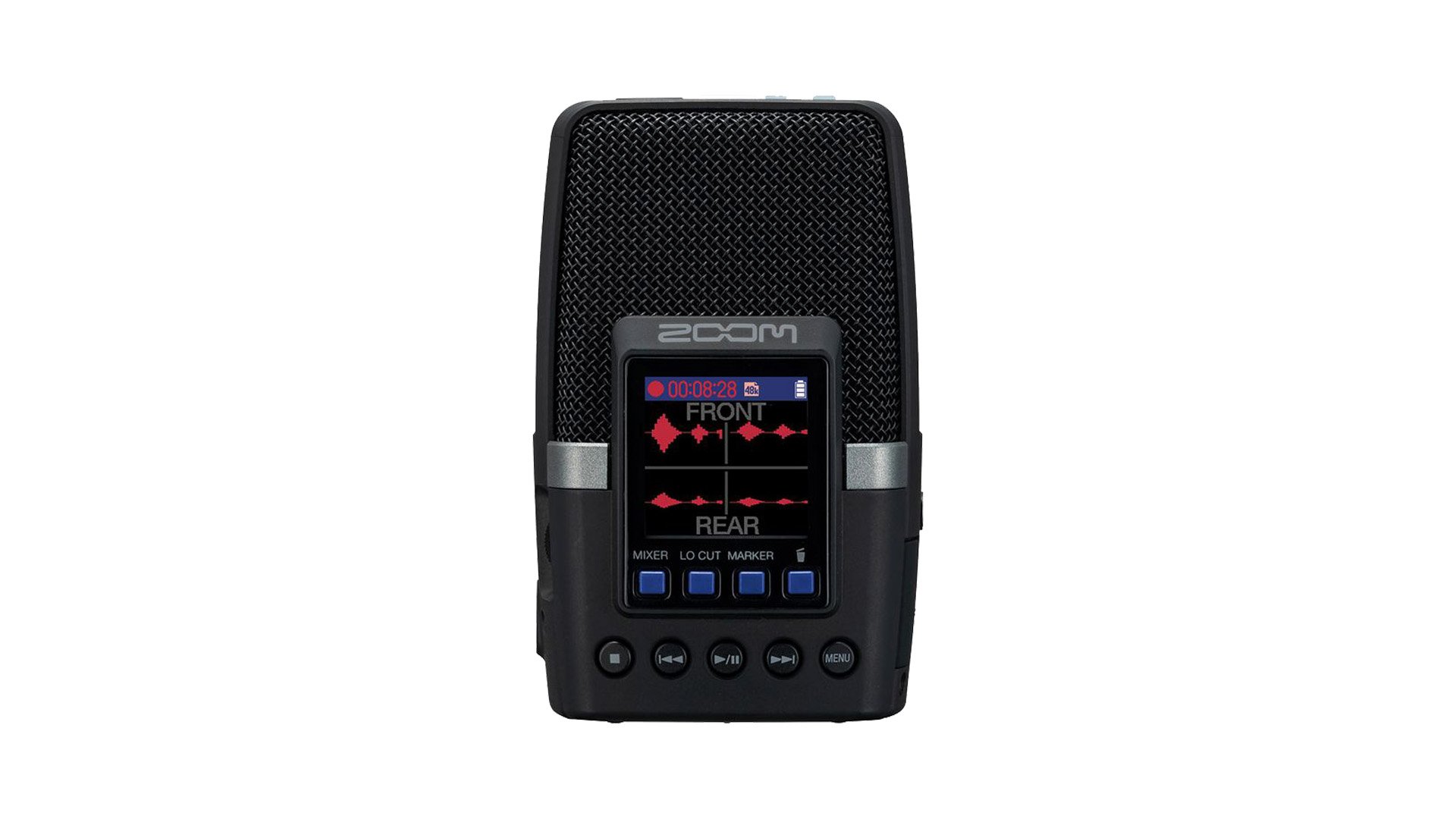

Display
1.3" full-color LCD

240 × 240



USB
Connector

USB Type-C


• Use a USB cable that supports data transfer.
Audio interface

USB2.0 High Speed

Input and output channels
4 in / 2 out (Multi)


2 in / 2 out (Stereo)

Sampling frequencies
44.1/48/96 kHz (audio interface only)


44.1/48 kHz (audio interface + onboard recording)

Bit depths
24-bit, 32-bit float
File transfer

USB2.0 High Speed



Power
2 AA batteries
Alkaline, Lithium, or Rechargeable NiMH
AC adapter
ZOOM AD-17: DC 5 V/1 A

• USB bus power is supported.


ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES (FRONT stereo recording)
Alkaline batteries
About 11 hours
NiMH batteries (1900 mAh)
About 9 hours
Lithium batteries
About 20.5 hours


FRONT stereo recording at 48 kHz/32-bit float, no headphones or remote, Power Saving time set to 1 minute
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES (FRONT+REAR stereo recording)
Alkaline batteries
About 8 hours
NiMH batteries (1900 mAh)
About 8 hours
Lithium batteries
About 17.5 hours


FRONT+REAR stereo recording at 48 kHz/32-bit float, no headphones or remote, Power Saving time set to 1 minute
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES (FRONT stereo + external mic recording)
Alkaline batteries
About 4 hours
NiMH batteries (1900 mAh)
About 4.5 hours
Lithium batteries
About 9.5 hours


FRONTstereo + external mic recording at 96kHz/32-bit float with headphones (33Ω load) and remote, Power Saving time set to 1 minute
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.
Power consumption
3 W maximum
Dimensions
60 mm (W) × 44 mm (D) × 97 mm (H)
Weight (including batteries)
170 g


Note: 0 dBu = 0.775 Vrms
