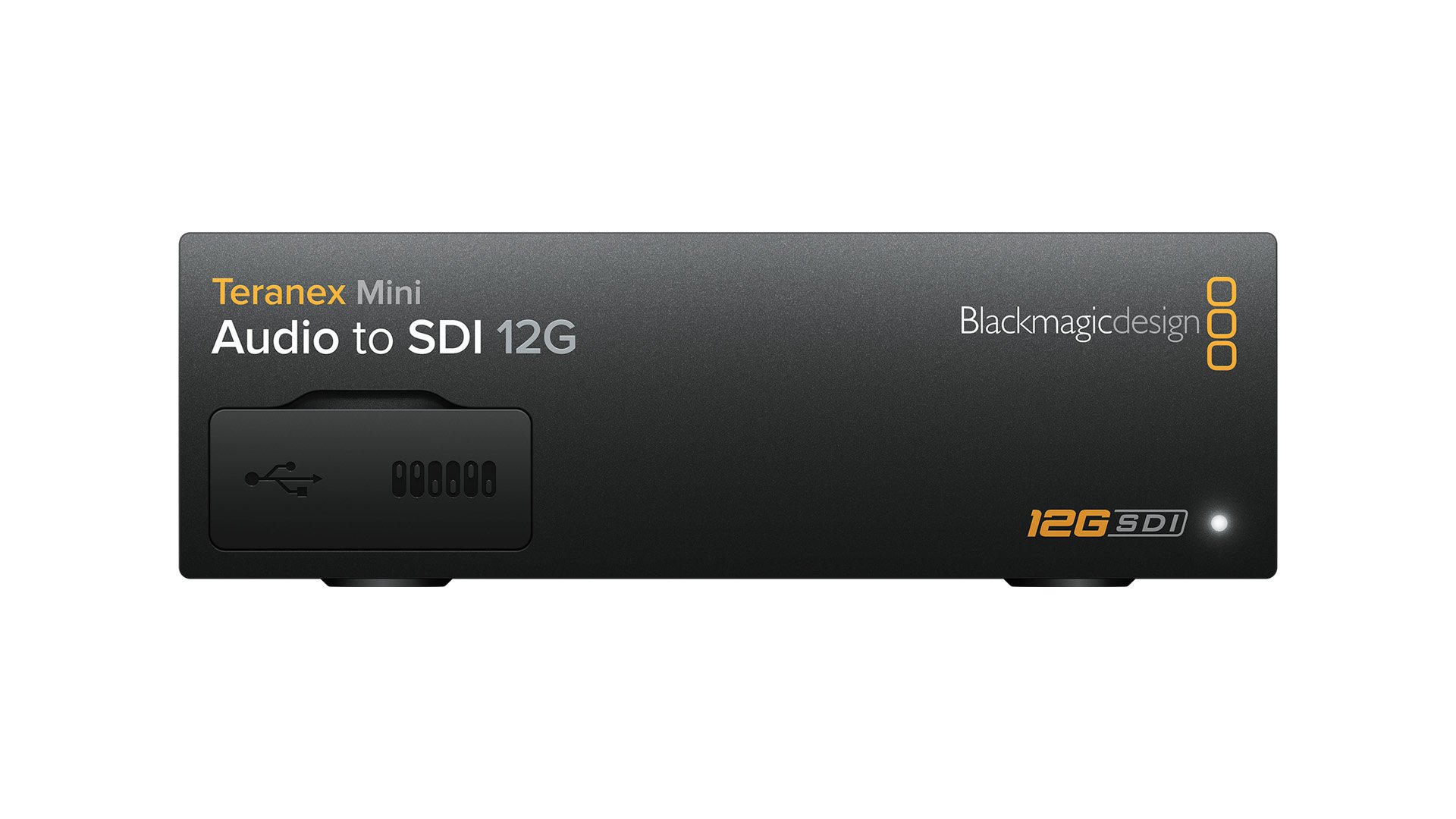

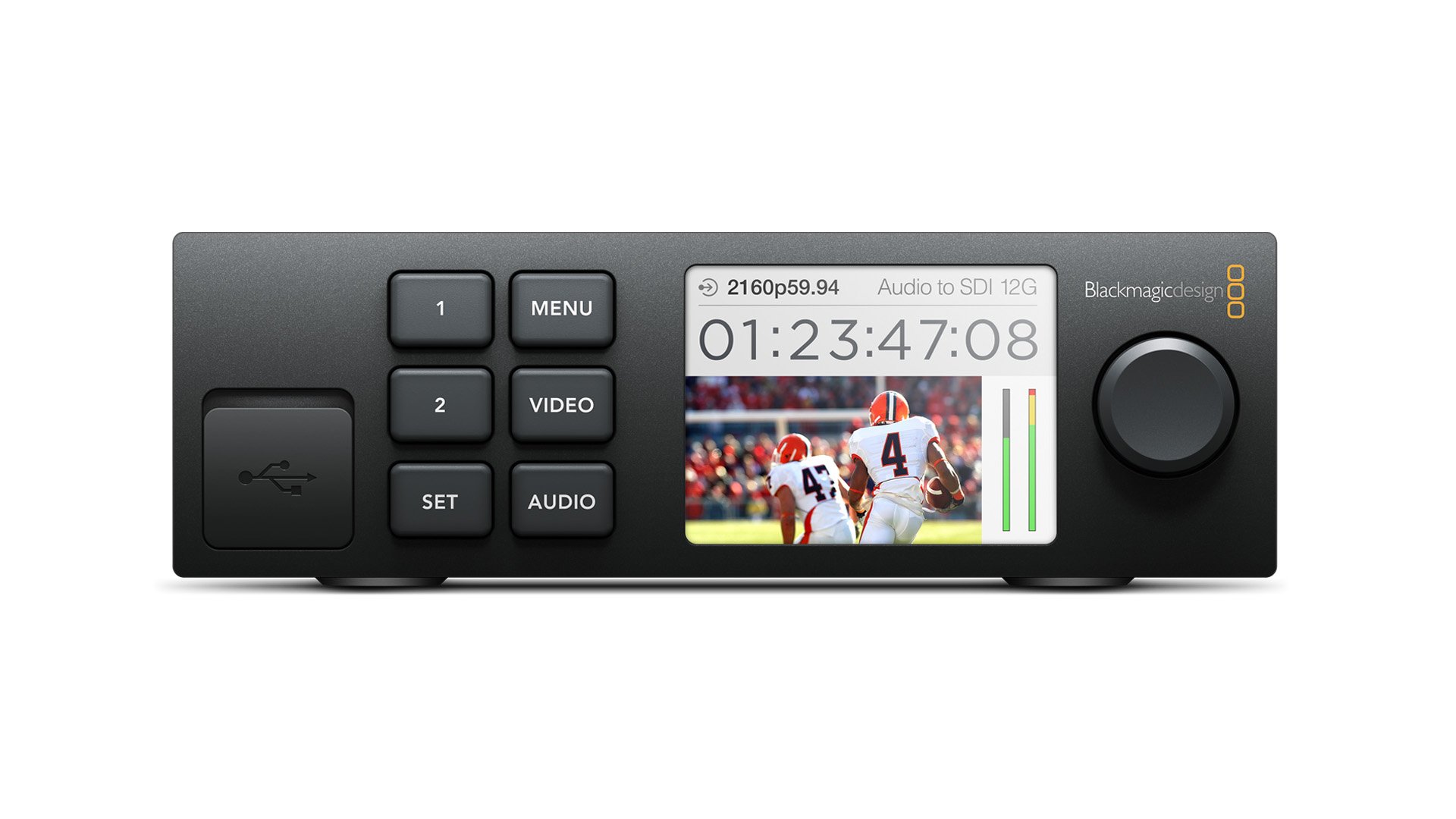

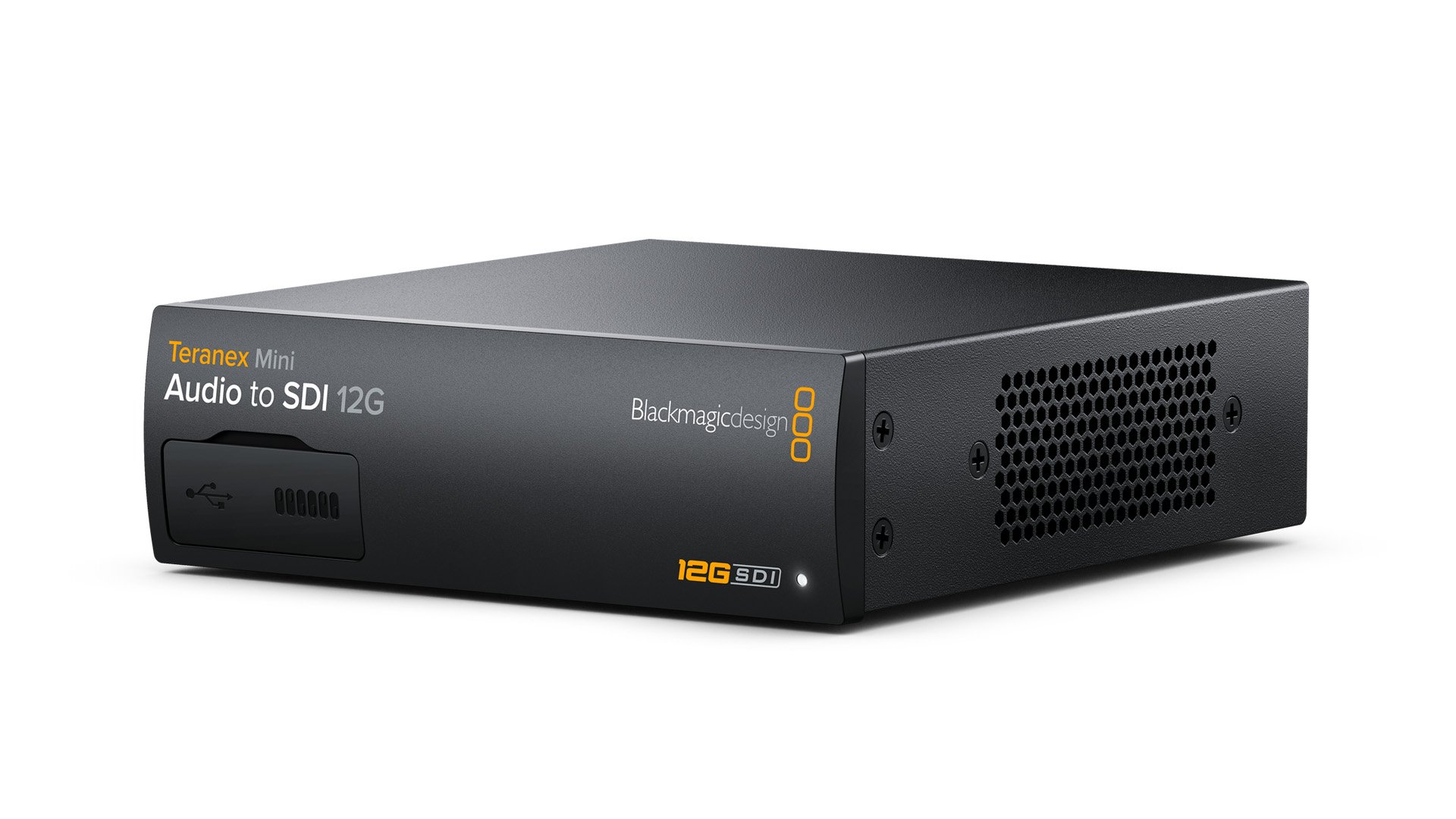

Teranex Mini Audio to SDI 12G
คุณสมบัติสินค้า:
Embed up to 2 channels of audio from balanced analog, optical or HiFi RCA, or embed up to or 4 channels of AES/EBU digital audio into any SD, HD, Ultra HD or DCI 4K SDI video connection. Take audio from devices such as audio mixers, iPods and analog decks and embed it into SDI video connections for use with SDI routers and decks.
หมวดหมู่ : กล่องแปลงสัญญาณ / Converter , Blackmagic Design ,
แบรนด์ : Blackmagic Design
Share
SDI Video Inputs
1 x 12G-SDI SD/HD/2K/4K auto switching.
Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.
SDI Video Outputs
1 x 12G-SDI output.
Analog Audio Inputs
2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode input.
Digital Audio Inputs
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.
Embedded Audio Support
16 channels.
Optical Audio Input
S/PDIF Signal with TOSLINK Connector.
Multi Rate Support
Automatic switching between SD/HD/2K and 4K.
Updates and Configuration
USB or Ethernet.
Reclocking
Yes
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K Video Standards
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
SDI Video Rates
SDI video connections are auto switching between standard definition SDI, 1.5G‑SDI, 3G‑SDI, 6G‑SDI and 12G‑SDI.
SDI Video Sampling
4:2:2, 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
SDI Auto Switching
Automatically selects between SD, HD, 3G, 6G and 12G‑SDI.
SDI Color Precision
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
SDI Color Space
REC 601, REC 709
