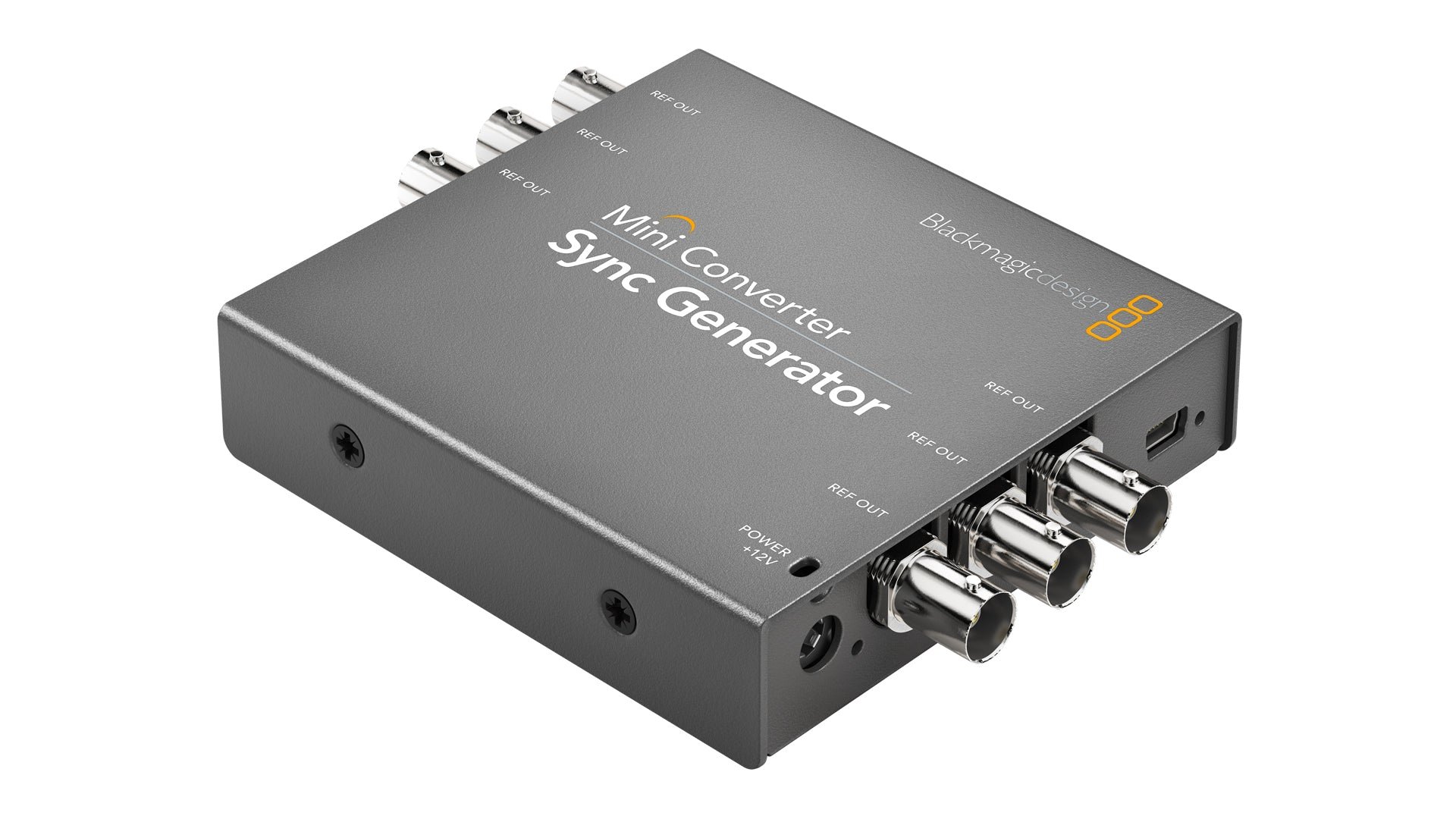

Mini Converter Sync Generator

คุณสมบัติสินค้า:

Includes 6 crystal stabilized video reference outputs for referencing all the video equipment in your studio in either high definition Tri‑Sync or standard definition Blackburst television standards. Perfect for small studios and outside broadcasts!

แบรนด์ : Blackmagic Design

Share

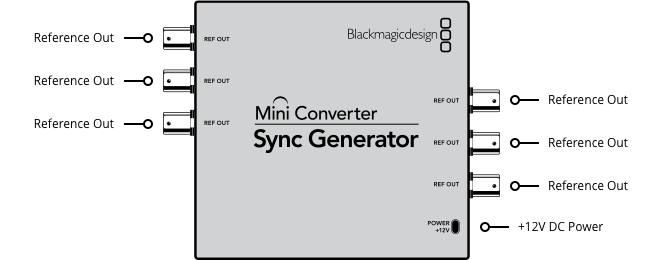

Connections
Analog Video Outputs
6 x common Blackburst or Tri Level reference outputs.
SDI Rates
270Mb, 1.5G.

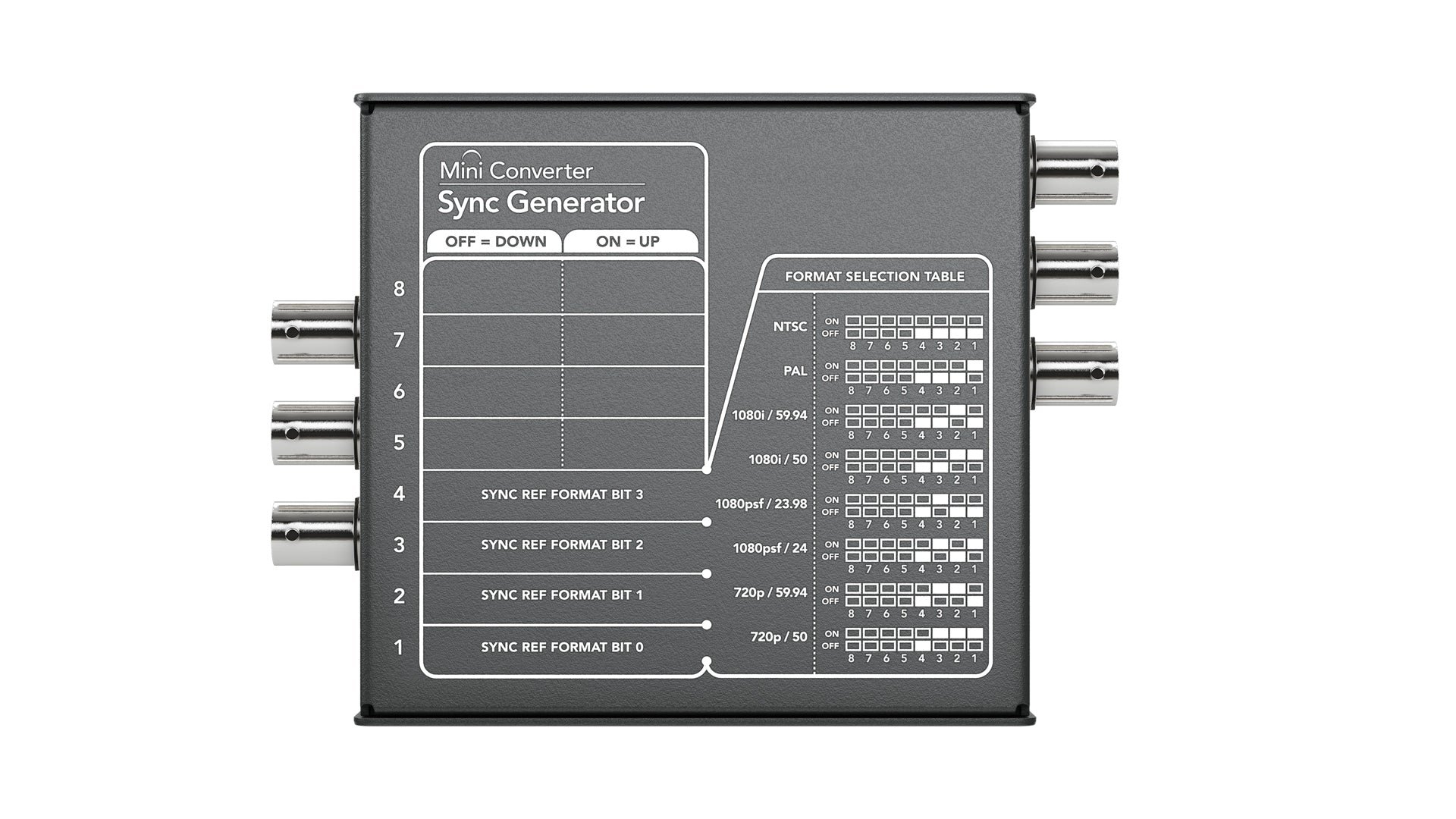

Multi Rate Support
Via mini switches
Updates and Configuration
USB



Standards
Analog Format Support
525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
Software
Software Control
Mac™ and Windows™ software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Operating Systems

Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.

Windows 10, 64-bit.
Settings Control
Mini Switches or USB software.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
3.00 Watts
Operational Voltage Range
12V DC

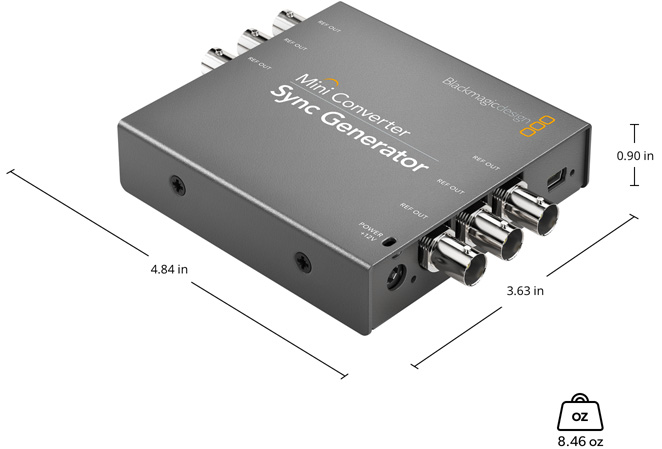

Physical Specifications


Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non‑condensing
