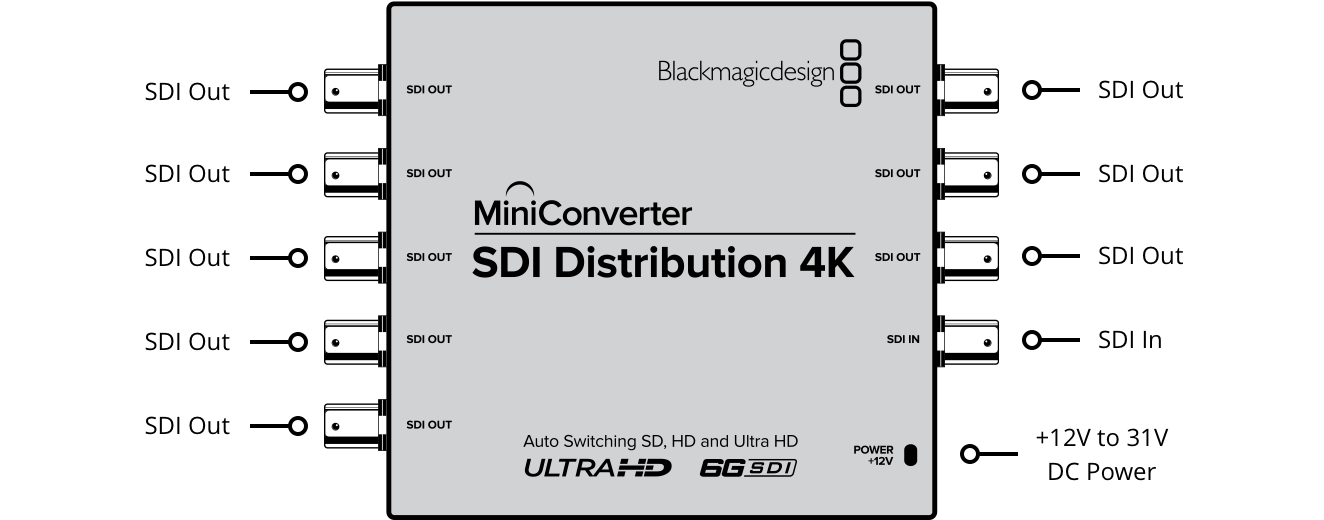

Connections
SDI Video Inputs
Switchable between SD, HD and 6G‑SDI.
Reclocking
Yes
SDI Video Outputs
8 outputs automatically match the SDI video input.
Multi Rate Support
Auto detection of SD, HD or 6G‑SDI.
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Video Standards
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M‑B, SMPTE 425M, SMPTE ST‑2081
SDI Video Rates
SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision
4:2:2 and 4:4:4
SDI Color Space
YUV and RGB
SDI Auto Switching
Automatically detects SD, HD or 6G‑SDI.
ASI Support
Yes
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
4.80 Watts
Operational Voltage Range
12 ‑ 31V DC
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.

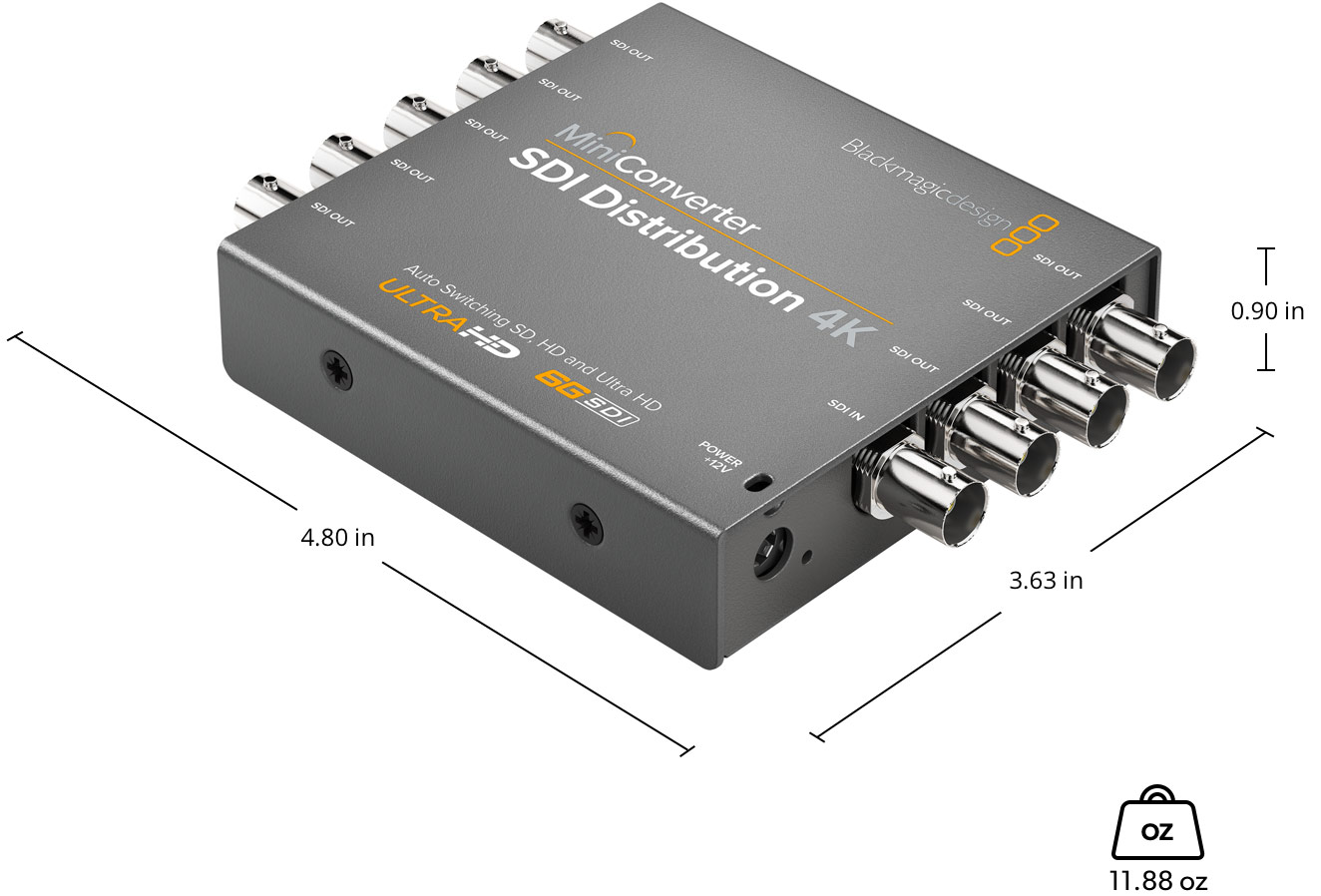

Windows 10, 64-bit.Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
